Name: Huawei S6730-S24X6Q Best offer and datasheet - fiberolt.com
Brand: Huawei
SKU: 02353AJW
Rating: 5.00 (1 reviews)

Description

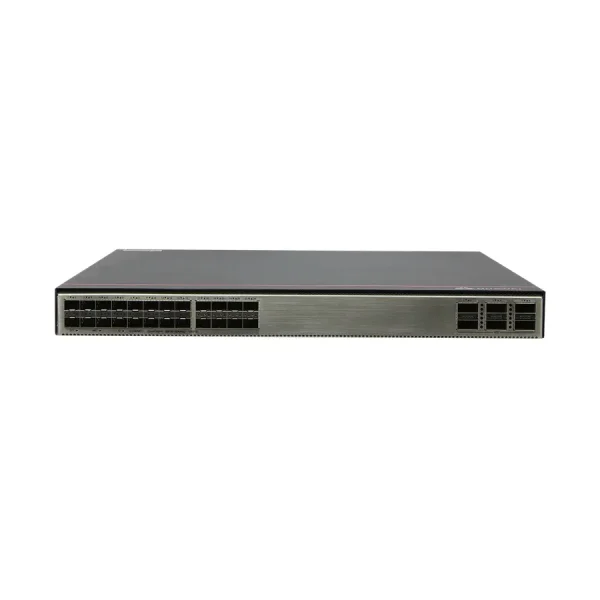

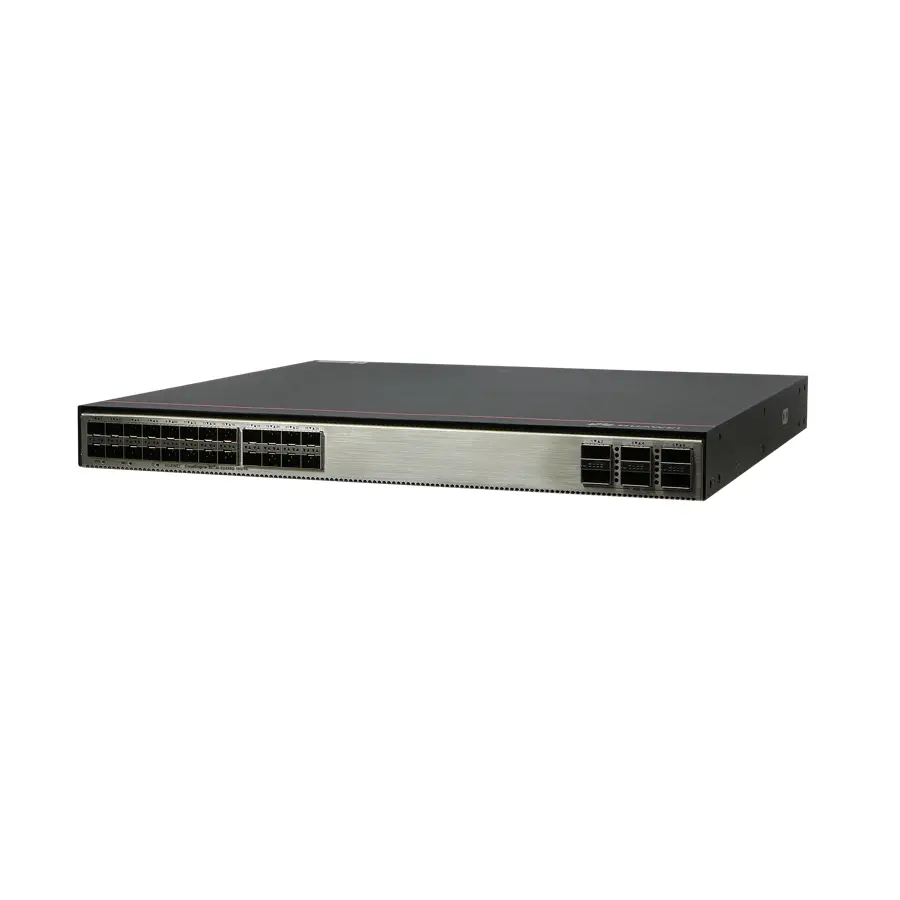

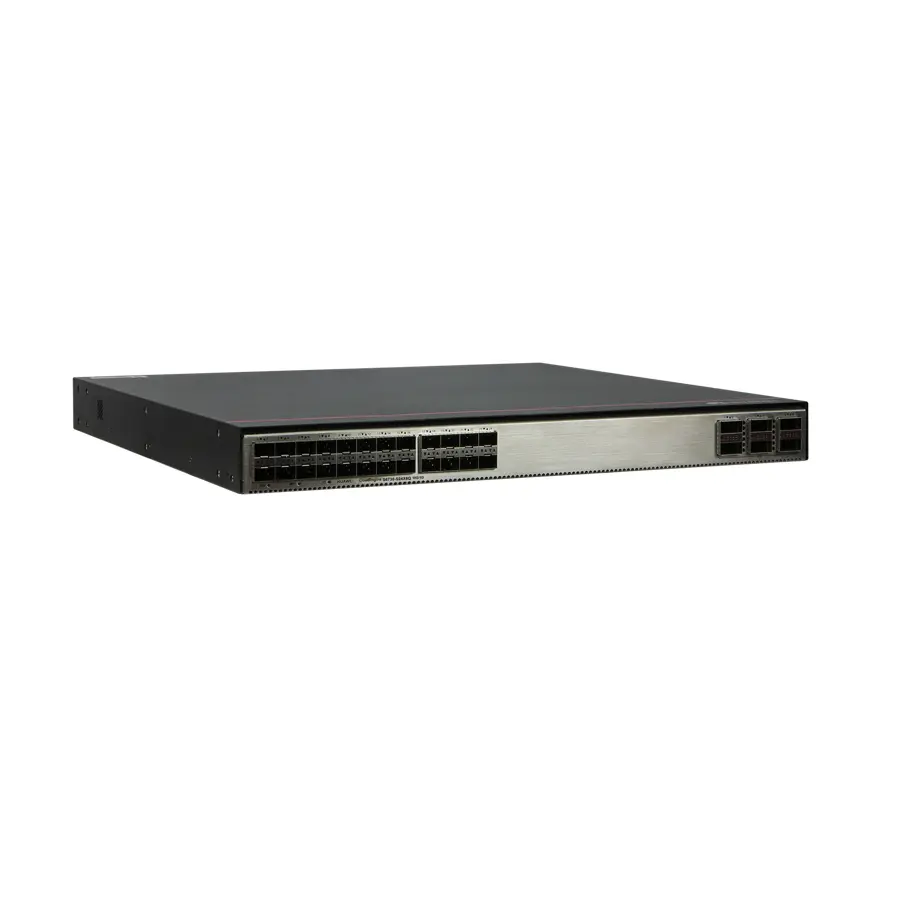

S6730-S24X6Q

24 x 10GE SFP+, 6 x 40G QSFP+ (Uplink 40GE can be upgraded to 100GE by RTU licenses)

Dual pluggable power modules, 1+1 power backup

Applicable power module

PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
PDC1000S12-DB (1000 W DC Power Module)

Performance

MAC: 64K
VLAN: 4K
Flash: 2 GB
Frequency: 1.4 GHz
Cores: 4
Memory (RAM): 4GB
Switching capacity: 960Gbps/2.4Tbps

Huawei CloudEngine S6730-S24X6Q can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and data center networks.

Specification

CloudEngineS6730-S24X6Q Service Features
Fixed ports	24×10 Gig SFP+, 6 x 40/100 Gig QSFP28
Memory (RAM)	4 GB
Flash	2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	62.27 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	N/A
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Power supply surge protection	Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Dimensions (H x W x D)	Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (with packaging)	8.9 kg (19.62 lb)
Stack ports	Any 10GE SFP+ ports (a maximum of 16 physical ports)
Stack ports	Any 40GE QSFP+ ports (a maximum of 6 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz
	High-Voltage DC input: 240 V DC
	DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
	High-Voltage DC input: 190 V DC to 290 V DC
	DC input: -38.4 V DC to -72 V DC
Maximum power consumption	High temperature 45°C (113°F), 100% traffic, and dual power modules: 170 W
Maximum power consumption	High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 249 W
Typical power consumption	30% traffic under the ATIS standard and dual power modules: 135 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 65 dB(A)
Relative humidity	5% to 95%, non-condensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	02353AJW
	02353AJW-001
	02353AJW-003
	02353AJW-004

Reviews (1)

1 review for S6730-S24X6Q

Gavin – August 29, 2024

Rated 5 out of 5
1AC and 1DC power are equipped, plug and play.
