Description

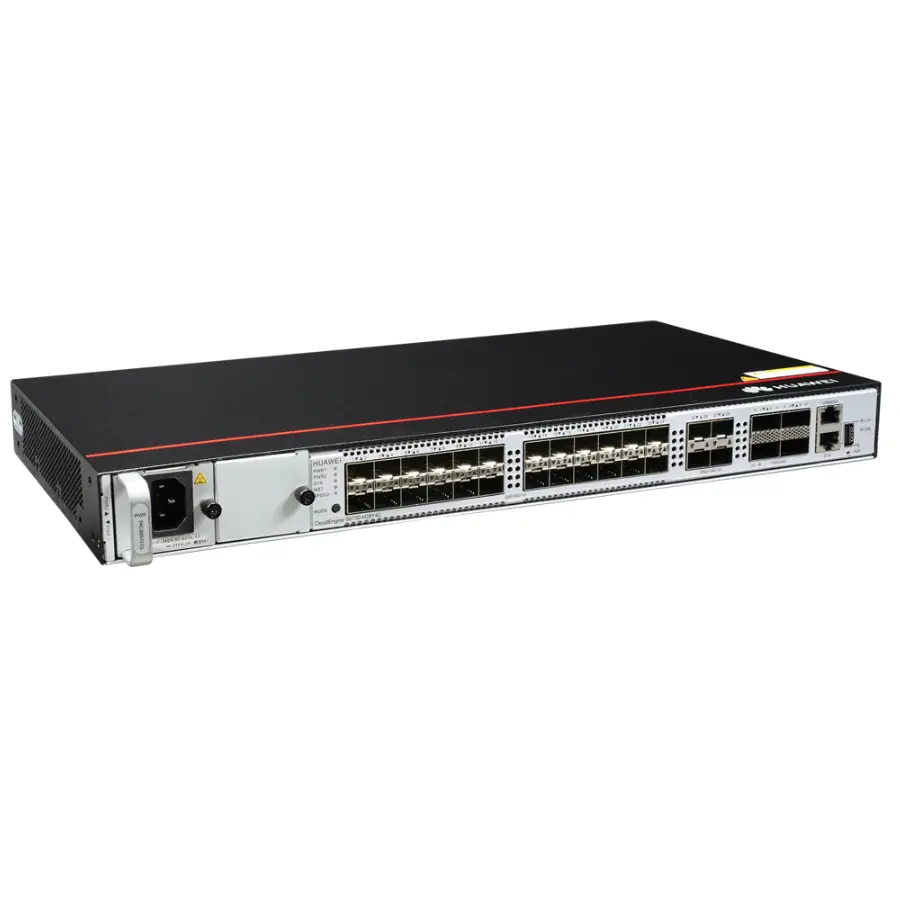

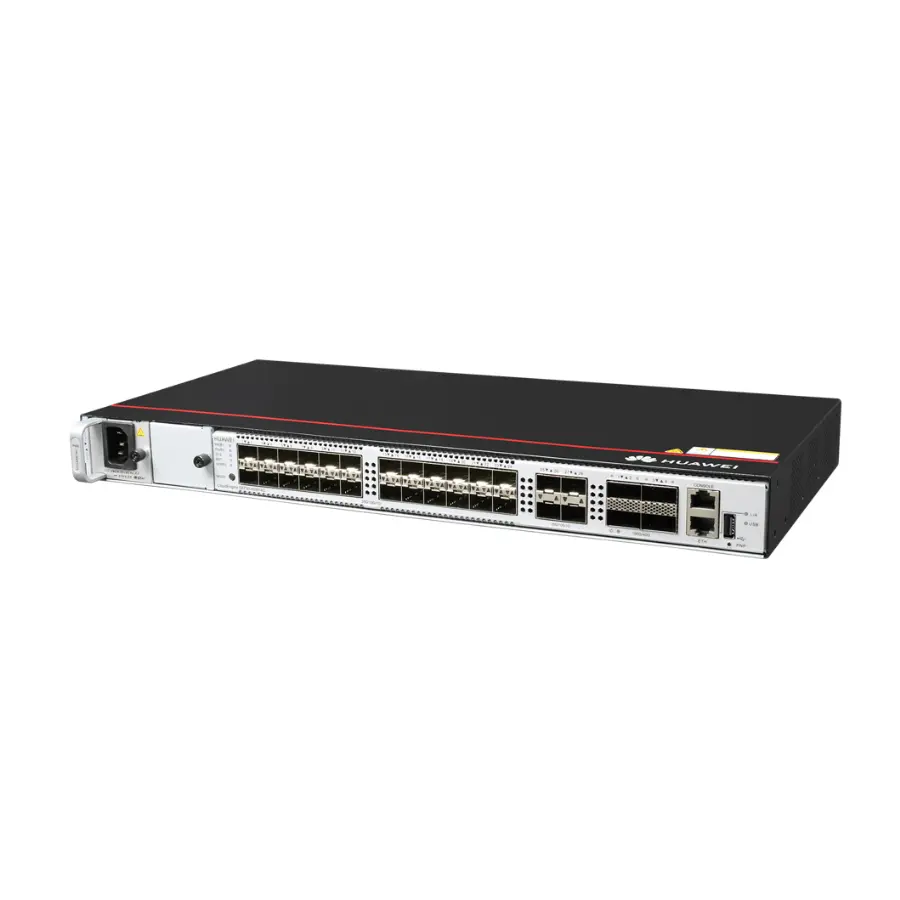

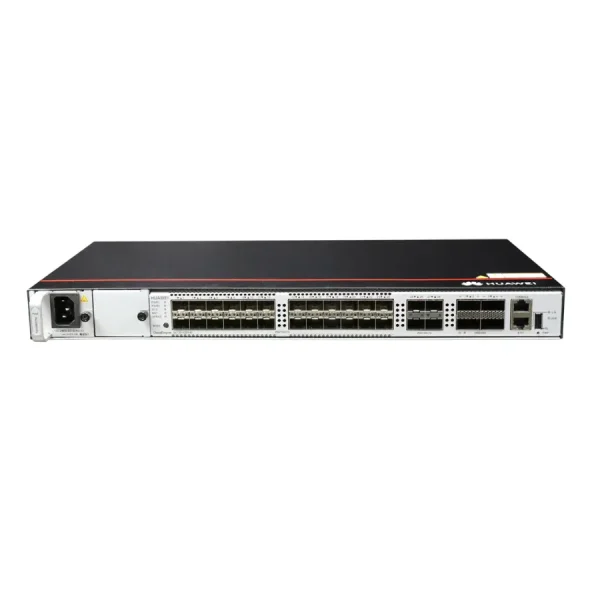

S6730-H28Y4C

28 x 25 Gig SFP28, 4 x 100 Gig QSFP28

Dual pluggable power modules, 1+1 power backup

Applicable power module

PDC260S12-DL (260 W DC Power Module)

PAC300S12-CL (300 W AC&240 V DC Power Module)

Performance

MAC: 384K
VLAN: 4K
Flash: 2 GB
Memory (RAM): 4GB
Switching capacity: 2.2Tbps/2.4Tbps

S6730-H28Y4C switche supports GE 10GE, 25GE, 40GE, and 100GE, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.

Specification

S6730-H28Y4C Service Features
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	115 mm × 545 mm × 360 mm (4.53 in. x 21.46 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.4 kg (7.5 lb)
Weight with packaging [kg(lb)]	4.65 kg (10.25 lb)
Typical power consumption [W]	186 W
Typical heat dissipation [BTU/hour]	634.65 BTU/hour
Maximum power consumption [W]	253 W
Maximum heat dissipation [BTU/hour]	863.26 BTU/hour
Static power consumption [W]	116 W
MTBF [years]	54.68 years
MTTR [hours]	2 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	64.5 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	51.7 dB(A)
Number of card slots	0
Number of power slots	2
Number of fans modules	3
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90–290 V AC; 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory	4 GB
Flash memory	2 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	–
Power supply surge protection [kV]	AC power module configured: ±6 kV in differential mode, ±6 kV in common mode DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
