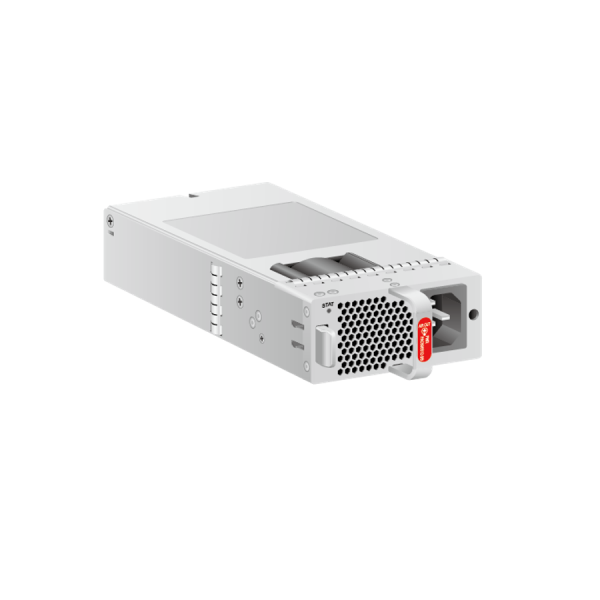

PAC600S12-DB, 600 W AC&240 V DC Power Module
1. Lock 2. Indicator
3. Fan air vent 4. Handle
5. Airflow flag (air out) 6. AC power socket
PAC600S12-DB can be installed in Huawei S6730-H24X6C, S6730-H48X6C, S6730-S24X6Q, S6730-S48X6Q, S6730S-S24X6Q-A, S6730S-H24X6C-A, S6735-S24X6C, S6735-S48X6C and CE6863 CE6881 CE6820 switch. PAC600S12-CB and PAC600S12-EB also 600W AC power for these switch, can be replaced with each other.
| Item | Specification |
| Dimensions without packaging (H x W x D) mm | 40 mm x 90 mm x 215 mm |
| Weight without packaging [kg] | 0.95 kg (2.09 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz |
| 240 V DC | |
| Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC |
| Maximum input current [A] | 100 V AC to 240 V AC: 8 A 240 V DC: 4 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
