S6730-H48X6C

(4 customer reviews)

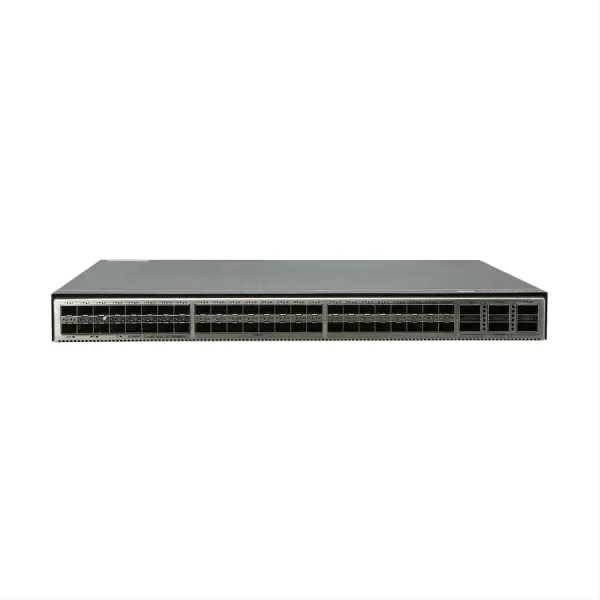

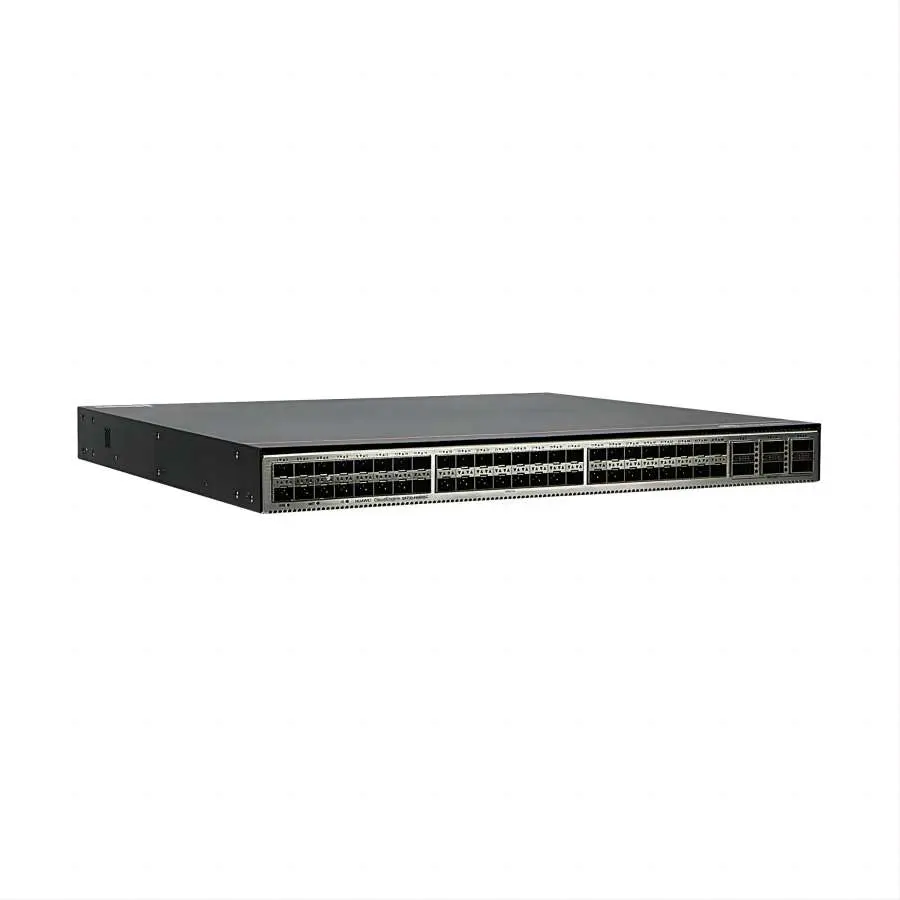

S6730-H48X6C (48*10GE SFP+, 6*40GE QSFP28, optional license for upgrade to 6*100GE QSFP28, without power module)

Brand

Huawei
Rate

100G, 10G, 40G
Port

48+
Enquiry
SKU: 02352FSF Category:
Description
S6730-H48X6C ports

48 x 10G SFP+, 6 x 40/100G QSFP28
Ports of 6 x 40/100G QSFP28 support 40GE by default. You can purchase 100G licenses to upgrade 40GE to 100GE
L-100GEUPG-S67H: S67XX-H Series, 40GE to 100GE Electronic RTU License, Per Device

Applicable power module

Supports 2 power slots, 1+1 power backup
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
PDC1000S12-DB (1000 W DC Power Module)

Performance

MAC: 384K
VLAN: 4K
Flash: 2 GB
Memory (RAM): 4GB
Switching capacity: 2.16Tbps/2.4Tbps

Huawei CloudEngine S6730-H48X6C switch is next-generation enterprise-class core and aggregation switches that provide 10GE downlink optical ports and 100GE uplink optical ports, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.

Specification

Specification

CloudEngine S6730-H48X6C Service Features
Fixed ports 48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
Chassis height(U) 1U
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum input current AC 600W：8A
DC 1000W：30A
Typical power consumption
(30% of traffic load, tested according to ATIS standard) consumption		 165 W
Maximum power consumption
(100% throughput, full speed of fans)		 291 W
MAC Up to 384K MAC address entries
IEEE 802.1d standards compliance
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLANs and voice VLANs
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN mapping
ARP Static ARP
Dynamic ARP
IP routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
Up to 256K FIBv4 entries
Up to 80K FIBv6 entries
Interoperability VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
Link-type Negotiation Protocol (LNP), similar to DTP
VLAN Central Management Protocol (VCMP), similar to VTP
Wireless service AP access control, AP domain management, and AP configuration template management
Radio management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, tag/terminal location, and spectrum analysis
Ethernet loop protection RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection
switchover
SEP
ERPS (G.8032)
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
MPLS MPLS L3VPN
MPLS L2VPN (VPWS/VPLS)
MPLS-TE
MPLS QoS
IPv6 features Neighbor Discover (ND)
PMTU
IPv6 Ping, IPv6 Tracert, IPv6 Telnet
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
Multicast Listener Discovery snooping (MLDv1/v2)
IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
MSDP
Multicast VPN
QoS/ACL Rate limiting in the inbound and outbound directions of a port
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
DRR, SP, and DRR+SP queue scheduling algorithms
WRED
Re-marking of the 802.1p and DSCP fields of packets
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address,
destination MAC address, source IP address, destination IP address, TCP/UDP source/destination
port number, protocol type, and VLAN ID
Queue-based rate limiting and shaping on ports
Security Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, port number, and VLAN ID
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1X authentication and limit on the number of users on a port
AAA authentication, RADIUS authentication, and HWTACACS authentication
NAC
SSH V2.0
HTTPS
CPU protection
Blacklist and whitelist
Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets
IPSec for management packet encryption
ECA
Deception
Reliability LACP
E-Trunk
Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
ITU-Y.1731
DLDP
LLDP
BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN VXLAN L2 and L3 gateways
Centralized and distributed gateway
BGP-EVPN
Configured through the NETCONF protocol
SVF Acting as the parent node to vertically virtualize downlink switches and APs as one device for
management
Two-layer client architecture
ASs can be independently configured. Services not supported by templates can be configured on the parent node.
Third-party devices allowed between SVF parent and clients
iPCA Marking service packets to obtain the packet loss ratio and number of lost packets in real time
Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and maintenance Cloud-based management
Virtual cable test
SNMP v1/v2c/v3
RMON
Web-based NMS
System logs and alarms of different severities
GVRP
MUX VLAN
IEEE 802.3az Automatic power adjustment on Ethernet interfaces
NetStream
Telemetry
