Huawei

S5731-S24P4X

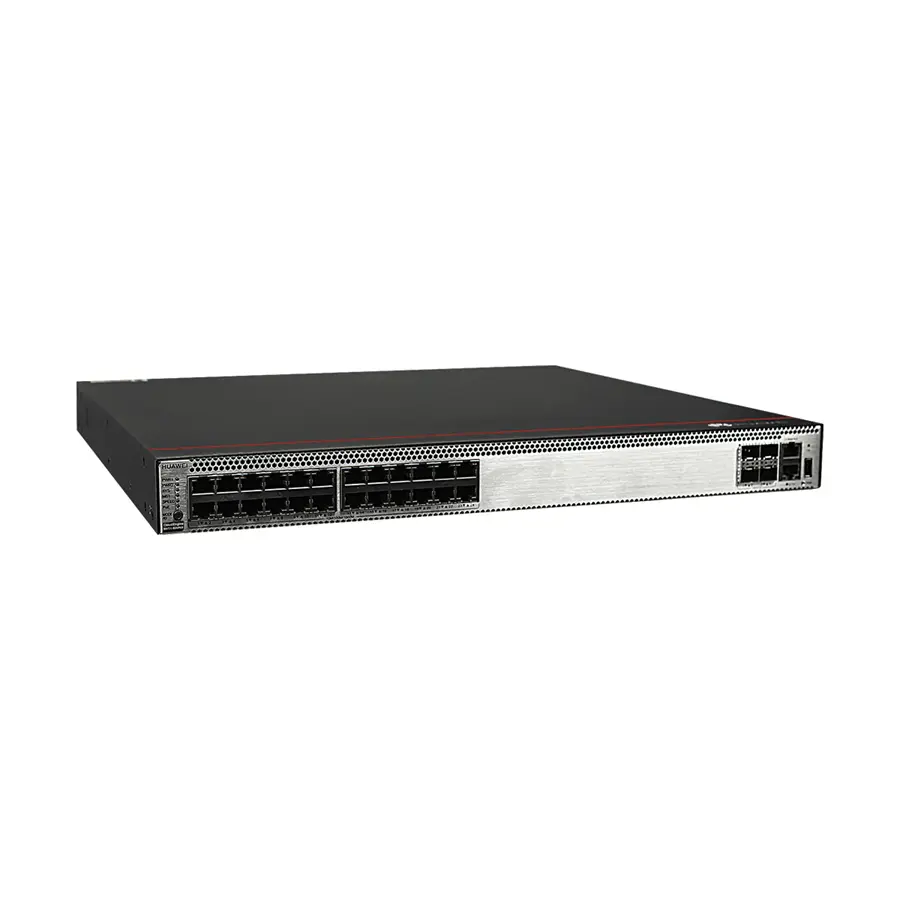

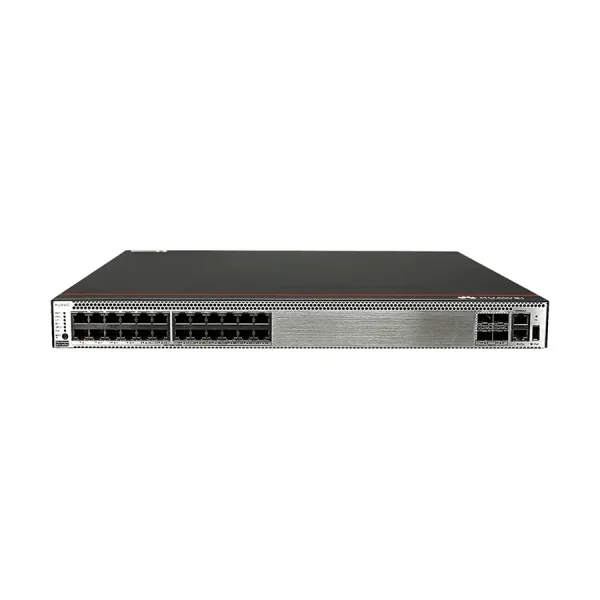

CloudEngine S5731-S24P4X (24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, PoE+, without power module)

Brand

Huawei
Rate

10G, GE
Port

24+
Quote now
SKU: 02353AHX Category:
Description
S5731-S24P4X

24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, PoE+
Dual pluggable power modules, 1+1 power backup

Applicable power module

PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module) (applicable in V200R019C10 and later versions)
PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
PDC1000S56-CB (1000 W PoE DC Power Module) (applicable in V200R021C00 and later versions)
PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust)) (applicable in V200R021C10 and later versions)

Performance

MAC Address: 64K
Super-VLAN specification: 256
Sub-VLAN specification: 1K
Flash: 1 GB
Frequency: 1.4 GHz
Cores: 4
Memory (RAM): 2GB
Forwarding performance: 96 Mpps
Switching capacity: 128 Gbps/672 Gbps

CloudEngine S5731-S series switches are next-generation standard gigabit switches that provide GE electrical/optical downlink ports and 10GE uplink ports.
Specification

Specification

Item Description
Memory (RAM) 2 GB
Flash 1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 57.21 years
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging) 8.6 kg (18.96 lb)
Stack ports 10GE SFP+ ports on the front panel
RTC Supported
RPS Not supported
PoE Supported
Rated voltage range AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) Not providing the PoE function: 121 W
100% PoE loads: 977 W (PoE: 720 W)
Typical power consumption (30% of traffic load, tested according to ATIS standard) 95 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 62.3 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02353AHX
02353AHX-001
02353AHX-003
