Description

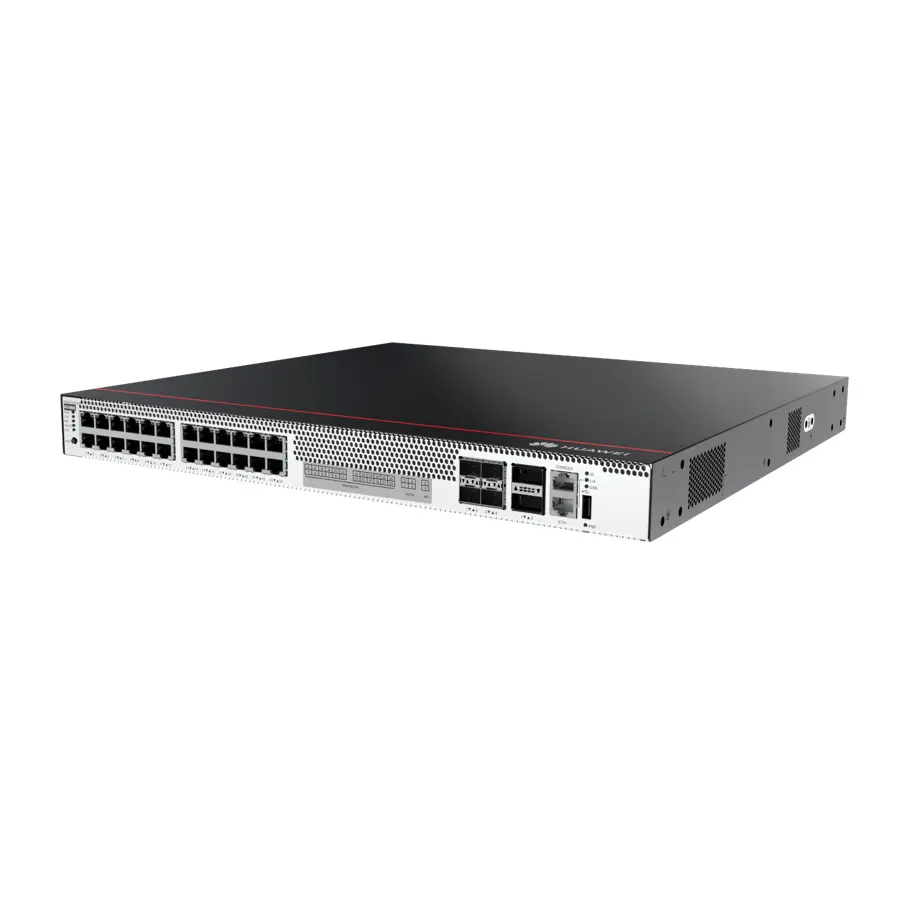

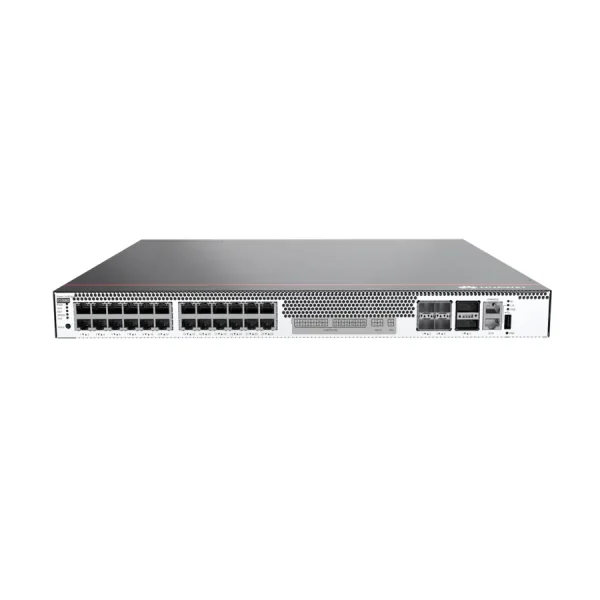

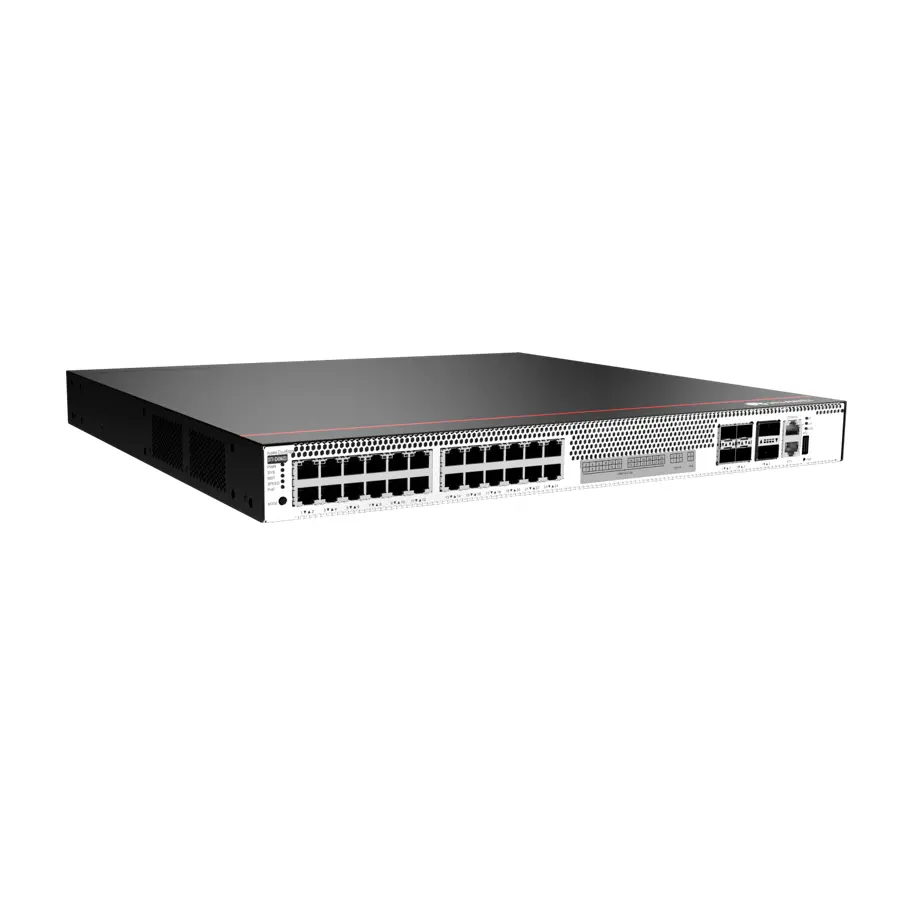

S5731-S24UN4X2Q

24 x 100M/1/2.5G Ethernet ports, 4 x 10GE SFP+ ports, 2 x 40GE QSFP ports, PoE++
3 power supplies, supporting N+1 redundancy

Applicable power module

PAC600S56-EB
PAC1000S56-EB
PDC1000S56-EB

Performance

Flash: 1 GB
Memory (RAM): 2GB
Forwarding Performance: 125 Mpps
Switching Capacity: 360 Gbps/672 Gbps
64,000 MAC entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
4094 VLANs
Guest VLAN, voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping

CloudEngine S5731-S series multi-GE switches are next-generation gigabit access switches that offer multi-GE (GE/2.5GE/10GE) electrical downlink ports and 10GE/40GE optical uplink ports. The series is widely used in a range of scenarios, including enterprise campus access and aggregation, as well as data center access.

Specification

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	6.83 kg (15.06 lb)
Weight with packaging [kg(lb)]	9.81 kg (21.63 lb)
Typical power consumption [W]	126 W
Typical heat dissipation [BTU/hour]	429.93 BTU/hour
Maximum power consumption [W]	Without PoE: 171 W Full PoE load: 2571 W (PoE: 2268 W)
Maximum heat dissipation [BTU/hour]	Without PoE: 583.48 Full PoE load: 8772.60
Static power consumption [W]	81 W
MTBF [years]	54.08 years
MTTR [hours]	2.22 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Three 600 W AC PoE power modules with 30% load: 50.50 dBA Three 1000 W AC PoE power modules with 30% load: 52.50 dBA Three 1000 W DC PoE power modules with 30% load: 52.50 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]	Three 600 W AC PoE power modules with 30% load: 36.82 dBA Three 1000 W AC PoE power modules with 30% load: 38.82 dBA Three 1000 W DC PoE power modules with 30% load: 38.82 dBA
Number of card slots	0
Number of power slots	3
Number of fans modules	2
Redundant power supply	1+1+1
Redundant power supply	Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from the front and left and air exhaust from the rear
PoE	Supported
