Huawei

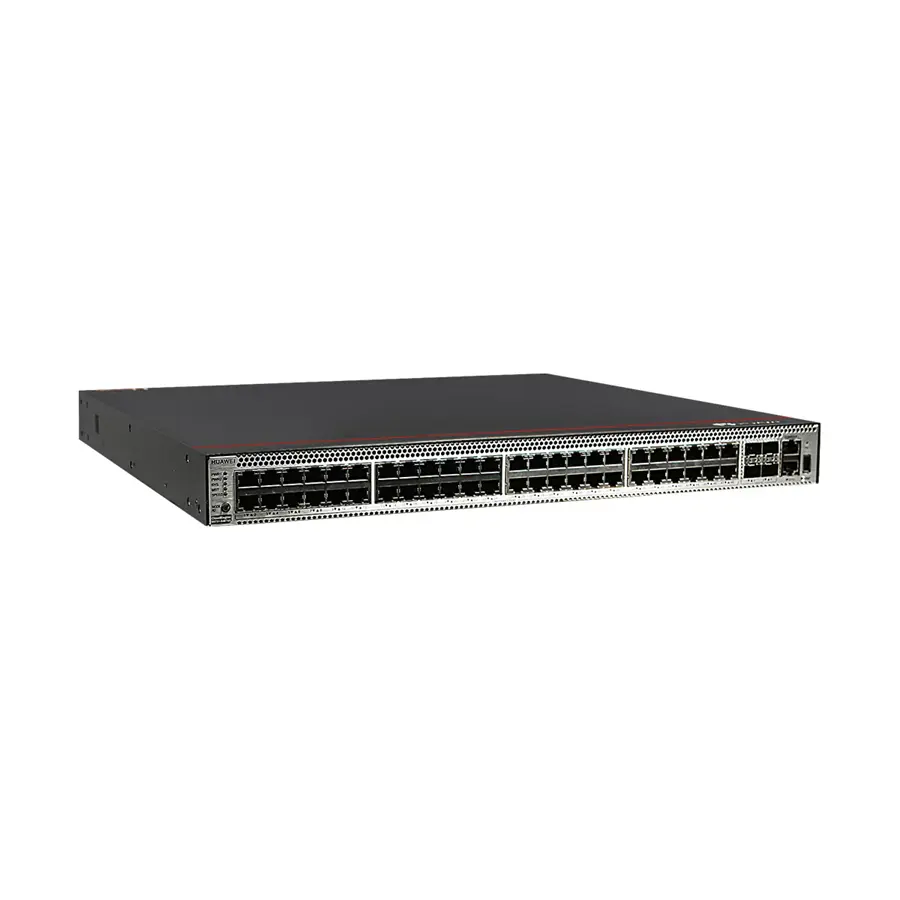

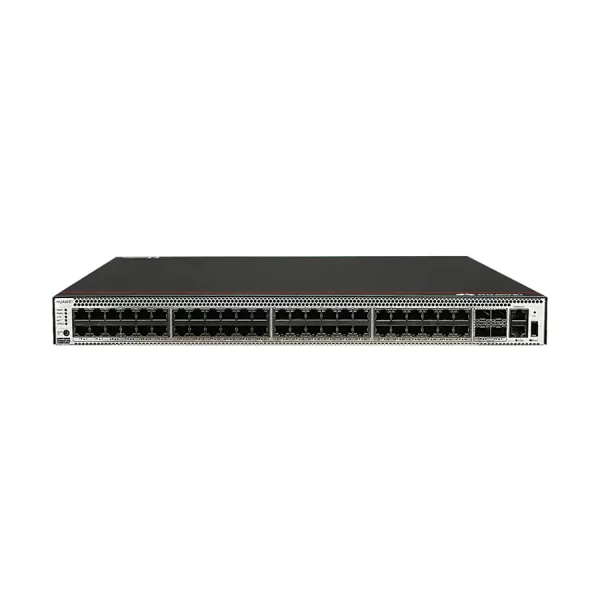

S5731-S48T4X

CloudEngine S5731-S48T4X (48 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, without power module)

Brand

Huawei
Rate

10G, GE
Port

48+
Quote now
SKU: 98011847 Category:
Description
S5731-S48T4X

48 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports
Dual pluggable power modules, 1+1 power backup

Applicable power module

PAC150S12-R (150 W AC Power Module)
PDC180S12-CR (180 W DC Power Module)
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)

Performance

MAC Address: 64K
Super-VLAN specification: 256
Sub-VLAN specification: 1K
Flash: 1 GB
Frequency: 1.4 GHz
Cores: 4
Memory (RAM): 2GB
Forwarding performance: 125 Mpps
Switching capacity: 176 Gbps/672 Gbps

CloudEngine S5731-S series switches are next-generation standard gigabit switches that provide GE electrical/optical downlink ports and 10GE uplink ports.
Specification

Specification

Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 5.01 kg (11.05 lb)
Weight with packaging [kg(lb)] 7.54 kg (16.62 lb)
Typical power consumption [W] 78 W
Typical heat dissipation [BTU/hour] 266.14 BTU/hour
Maximum power consumption [W] 111 W
Maximum heat dissipation [BTU/hour] 378.74 BTU/hour
Static power consumption [W] 50 W
MTBF [years] 73.81 years
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 45.62 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.94 dB(A)
Number of card slots 0
Number of power slots 2
Number of fans modules 2
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F).
The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when 10GE SFP+ optical modules with 40 km or longer transmission distances are used.
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 240 V AC; 50/60 Hz
High-voltage DC input: 240 V DC
DC input: –48 V DC to –60 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC; 45–65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum input current [A] The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air flows in from the left, right, and front, and flows out from the rear.
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
