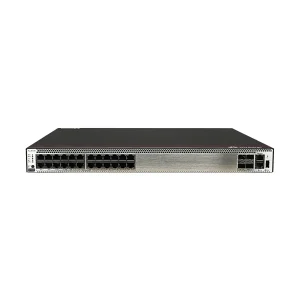

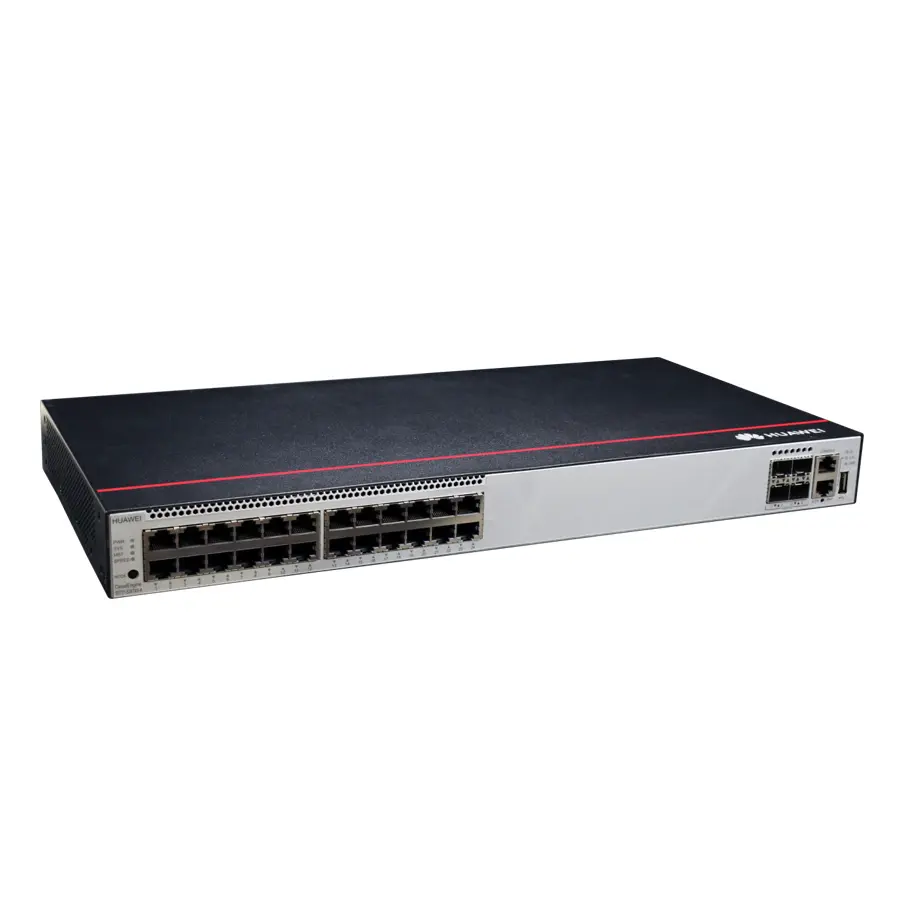

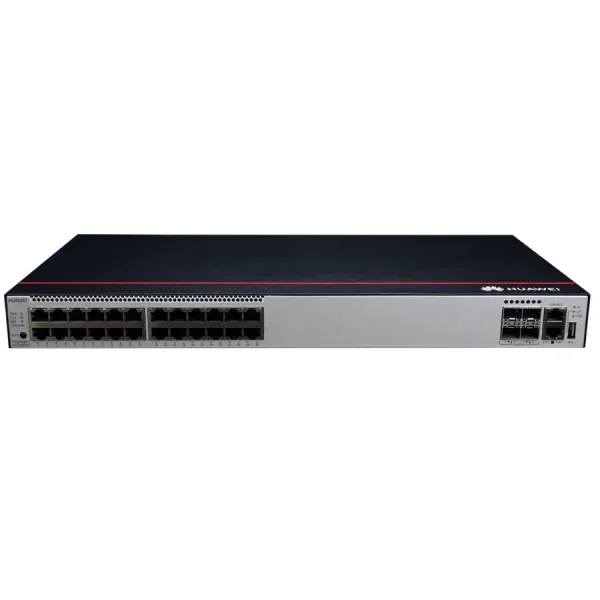

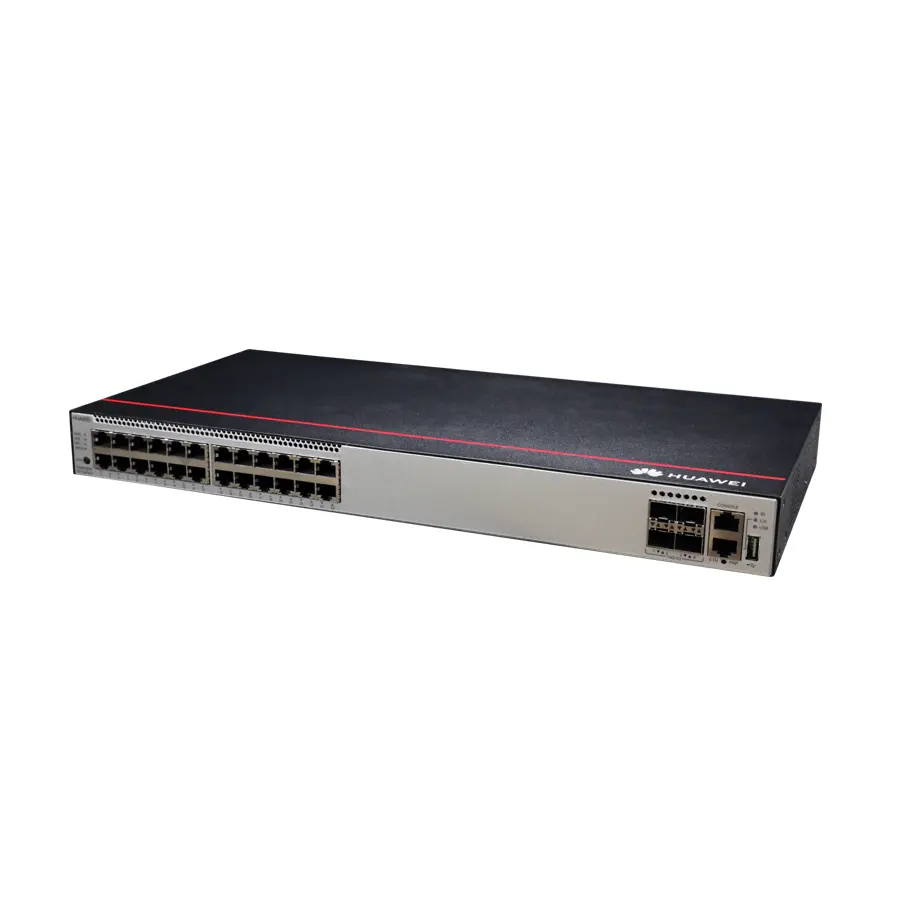

CloudEngine S5731-S24T4X-A (24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, AC power)
| Brand |
Huawei |
|---|---|
| Rate |
10G, GE |
| Port |
24+ |
24 x 10/100/1000BASE-T ports, 4 x 10G SFP+, Fix AC power
MAC Address: 64K
Super-VLAN specification: 256
Sub-VLAN specification: 1K
Flash: 1 GB
Frequency: 1.4 GHz
Cores: 4
Memory (RAM): 2GB
Forwarding performance: 96 Mpps
Switching capacity: 128 Gbps/672 Gbps
| Item | Specification |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 355.0 mm (3.54 in. x 21.65 in. x 13.98 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.04 kg (6.70 lb) |
| Weight with packaging [kg(lb)] | 4.40 kg (9.70 lb) |
| Typical power consumption [W] | 63 W |
| Typical heat dissipation [BTU/hour] | 214.96 BTU/hour |
| Maximum power consumption [W] | 80 W |
| Maximum heat dissipation [BTU/hour] | 272.97 BTU/hour |
| Static power consumption [W] | 48 W |
| MTBF [years] | 47.34 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 44.90 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 31.21 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when 10GE SFP+ optical modules with 40 km or longer transmission distances are used. | |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification |
