As for GPON OLT, Huawei occupies large market share in the world, many ISPs use Huawei MA5600T MA5800 OLT. This article actually is a glance lists of current mainstream OLT products, convenient for customers to know products quickly.
Chassis
MA5600T series OLT includes MA5608T MA5683T MA5680T; MA5800 series OLT includes MA5800-X2, X7, X15, X17. MA5800 is Next Generation OLT of MA5600T, much better performance than MA5600T series, and supports XGSPON.
| Item | Width (inch) | Height(U) | Control board slot Qty | Power board slots Qty | Uplink board slots Qty | GPON board slots Qty |
| MA5608T | 19 | 2 | 2 | 1 | 0 | 2 |
| MA5683T | 19 | 6 | 2 | 2 | 2 | 6 |
| MA5680T | 19 | 10 | 2 | 2 | 2 | 14 |

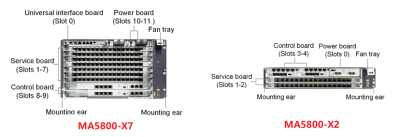

| MA5800-X2 | 19 | 2 | 2 | 1 | 2 | |
| MA5800-X7 | 19 | 6 | 2 | 2 | 7 | |
| MA5800-X15 | 19 | 11 | 2 | 2 | 15 | |
| MA5800-X17 | 21 | 11 | 2 | 2 | 17 | |
Note: MA5800 OLT uplink Board is NXED, it shares same slot with GPON boards.
Control Board
| Board Specifications | SCUN | SCUH | MCUD | MCUD1 | MPLA | MPLB | MPSC | MPSA |
| Chassis supported | MA5683T MA5680T | MA5608T | MA5800 X7 X15 X17 | MA5800 X2 | ||||
| Bandwidth per slot (load balancing mode) | 20 Gbit/s | 40 Gbit/s | 20 Gbit/s | 20 Gbit/s | 100 Gbit/s | 200 Gbit/s | 80 Gbit/s | 40 Gbit/s |
| Upstream or cascading port | 4*GE | 4*10GE | 4*GE | 2*10G+2*GE | 4*10GE | 4*10GE | 4*10GE | 2*10G+2*GE |
Uplink Board
| Item | GICG | GICF | X2CS | X2CK | NXED | NCEB |
| Chassis supported | MA5683T MA5680T | MA5800 | ||||
| Uplink port | 2*GE electrical | 2*GE | 2*10GE | 2*10GE | 8*10GE | 2*100GE |
GPON XGPON XGSPON Board
| MA5600T Series | ||||
| Model | Port | Modules supported | Encapsulation Type | Port Rate |
| GPBC | 8-GPON | B+ C+ C++ | SFP | Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
| GPBD | 8-GPON | |||
| GPBH | 8-GPON | |||
| GPFD | 16-GPON | |||
| XGBC | 4-10G GPON | N1,N2a | SFP+ | Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
| XGBD | 8-10G GPON | |||
| MA5800 Series | ||||
| GPHF/GPUF/GPLF/GPSF | 16-GPON | B+ C+ C++ | SFP | Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
| XGHD | 8-10G GPON | N1,N2a | SFP+ | Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
| XGSF | 16-10G GPON | |||
| TWED | 8*XGS-PON | N1 | XFP | Asymmetric mode: Tx: 9.953 Gbit/s Rx: 9.953 Gbit/s Symmetric mode: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
| XSHD/XSHD/TWHD | 8*XGS-PON | N1 N2 | SFP+ | |
| XSHF | 16*XGS-PON | |||
| CGID | 8*XG-PON & GPON Combo | N1 N2a | XFP | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
| CGHD | 8*XG-PON & GPON Combo | B+ N2a C+ D | SFP+ | |
| CGHF | 16*XG-PON & GPON Combo | |||
| CSHF | 16*XGS-PON & GPON Combo | B+ C+ D | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XGS-PON channel: Tx: 9.953 Gbit/s Rx: 9.953/2.488 Gbit/s |
|
| FLHF | 16* Flex-PON GPON, XG(S)-PON, and XG(S)-PON&GPON Combo | B+ C+ C++ D N1 N2a |
SFP/SFP+ | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s XGS-PON channel: Tx: 9.953 Gbit/s Rx: 9.953/2.488 Gbit/s |
Above are not all the boards of Huawei OLT, some very old or rare boards are not listed here; If you do not find the boards that needed, you can contact fiberolt.com directly, we will have a fast response.
