Huawei MA5800 X2 X7 X15 X17 OLT 8-port 10GE uplink board
| Brand |
Huawei |
|---|

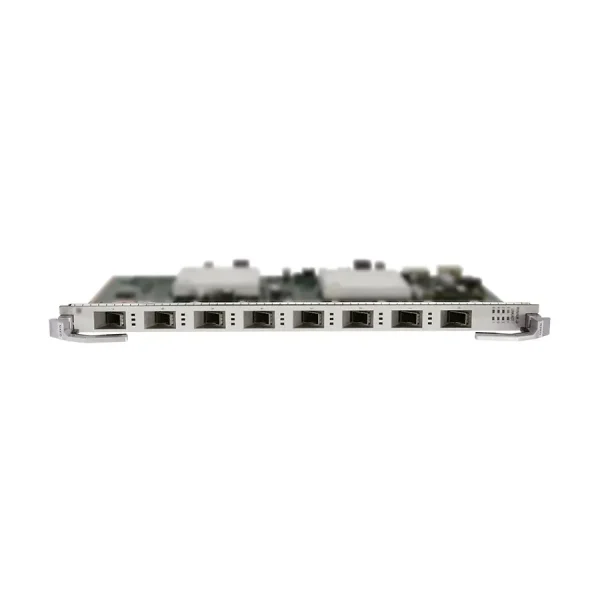

Huawei MA5800 X2, X7, X15 and X17 8-port 10GE/GE uplink board
MAC address number: 262143
1588v2 supported
1588ACR supported
Sync ETH clock supported
Max frame size: 2052 bytes, 9216 bytes (jumbo frame enabled)
H901NXED comes without 10G optical SFP+ modules, but it supports 10GE 0.3km, 10km, 40km, 80km module, please check the modules that you needed with SFPCORE sales before purchasing.
| Board Specification | ||||
| Power Consumption | Static: 40 W Maximum: 53 W |
|||
| Net Weight | 0.99 kg | |||
| MAX Frame Size | 2052 bytes After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
|||
| H901NXED two-fiber bidirectional optical module | ||||
| Operating Wavelength | 850 nm | 1310 nm | 1550 nm | 1550 nm |
| Encapsulation Type | SFP+ | SFP+ | SFP+ | SFP+ |
| Port Rate | 10 Gbit/s | 10 Gbit/s | 9.95-11.1 Gbit/s | 9.953Gbit/s-10.3125 Gbit/s |
| Minimum Output Optical Power | -7.3 dBm | -8.2 dBm | -4.7 dBm | 0 dBm |
| Maximum Output Optical Power | -1 dBm | 0.5 dBm | 4 dBm | 4 dBm |
| Maximum Receiver Sensitivity | -9.9 dBm | -12.6 dBm | -14.1 dBm | -24 dBm |
| Optical Connector Type | LC | LC | LC | LC |
| Optical Fiber Type | Multi-mode | Single-mode | Single-mode | Single-mode |
| Reach | 0.3 km | 10 km | 40 km | 80 km |
| Overload Optical Power | -1 dBm | 0.5 dBm | 0.5 dBm | -7 dBm |
| Extinction Ratio | 3 dB | 3.5 dB | 3 dB | 9 dB |
| Model | QTY/CTN | G.W/CTN (kg) | Dimension/CTN (cm) | CBM/CTN (m³) |
| H901NXED | 1 | 3 | 50*33*8 | 0.013 |
Fiberolt.com provides the most commonly used incoterms for your shipping.
We make the cargo available at our factory, or your designated agency and location in China mainland city with free charges.
You will receive the cargo in your country with insurance, which is essential for international transportation to guarantee your property security.
Never worry about the custom clearance and duty fees, all charges are included, just wait for the cargo at your gate.
To ensure your merchandise arrive safely and timely with the assistance of our reliable international carriers, we have flexible shipping ways by Express, AirCargo, Marine and Road.According to your specific requirement and cargo volumes, our sales representative will offer the most suitable and cost-effective shipping method for you.
Methods |
Tools |
Time |
Destination |
|---|---|---|---|
|
DHL/FedEx/UPS/TNT |
Airplane |
5~7 days |
Door to Door |
|
Airway |
Airplane |
7~10 days |
Airport |
|
Marine |
Vessel |
30~45 days |
Seaport |
|
Road |
Truck/Train(China-Europe Railway) |
Unstable |
Assigned Address |
Please kindly fill in the below info to submit the enquiry.
Jaupaj –
Fiberolt.com team sent me an additional 2pcs 10*GE uplink modules for free, thanks a lot!
Nathaniel –

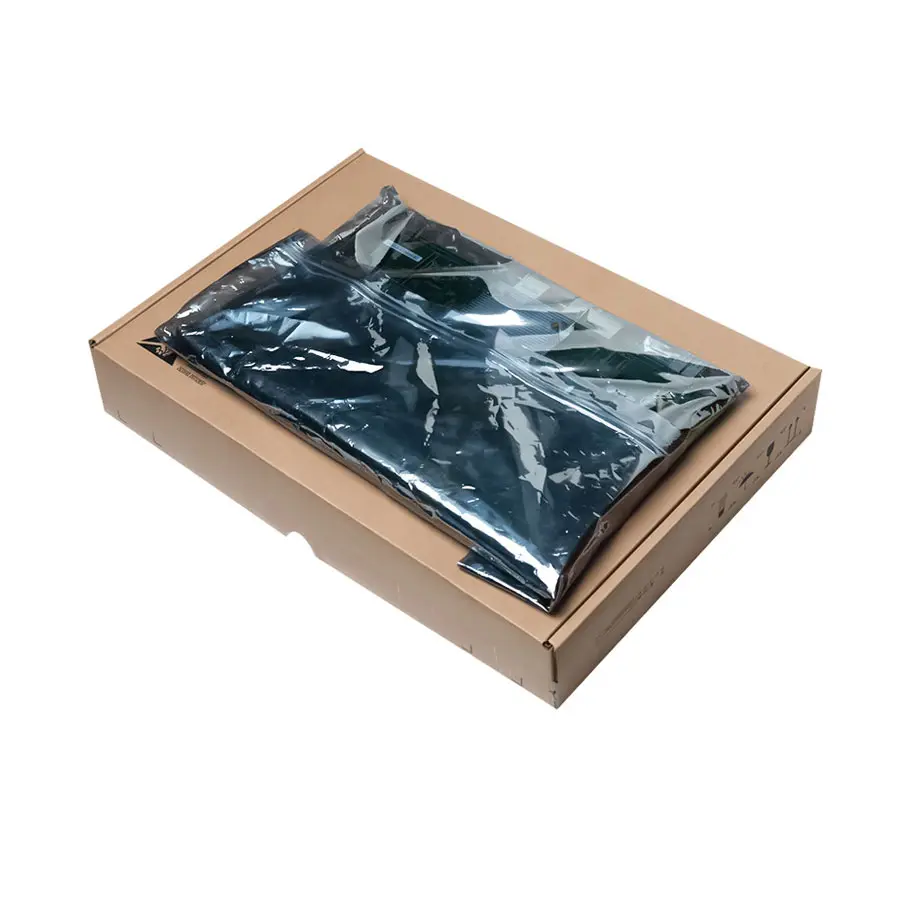

Received NEXD, my first impression is that it’s very new. Inside the box, there’s a test report, which is very thoughtful.
