Huawei MA5680T MA5683T OLT 2-port 10GE/GE uplink board
| Brand |
Huawei |
|---|

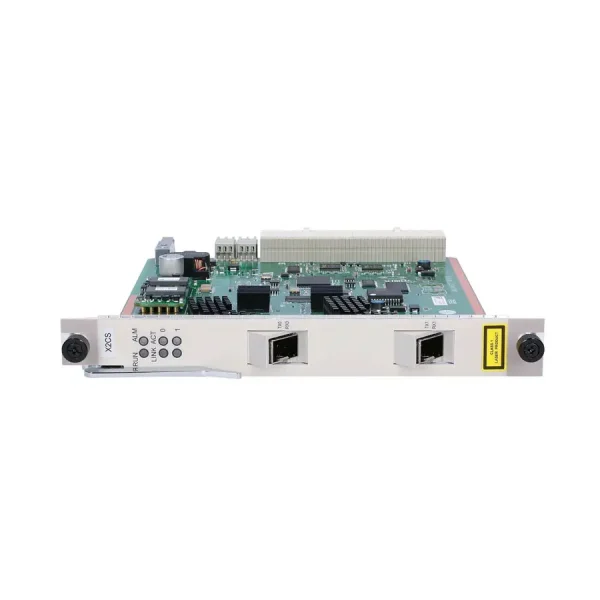

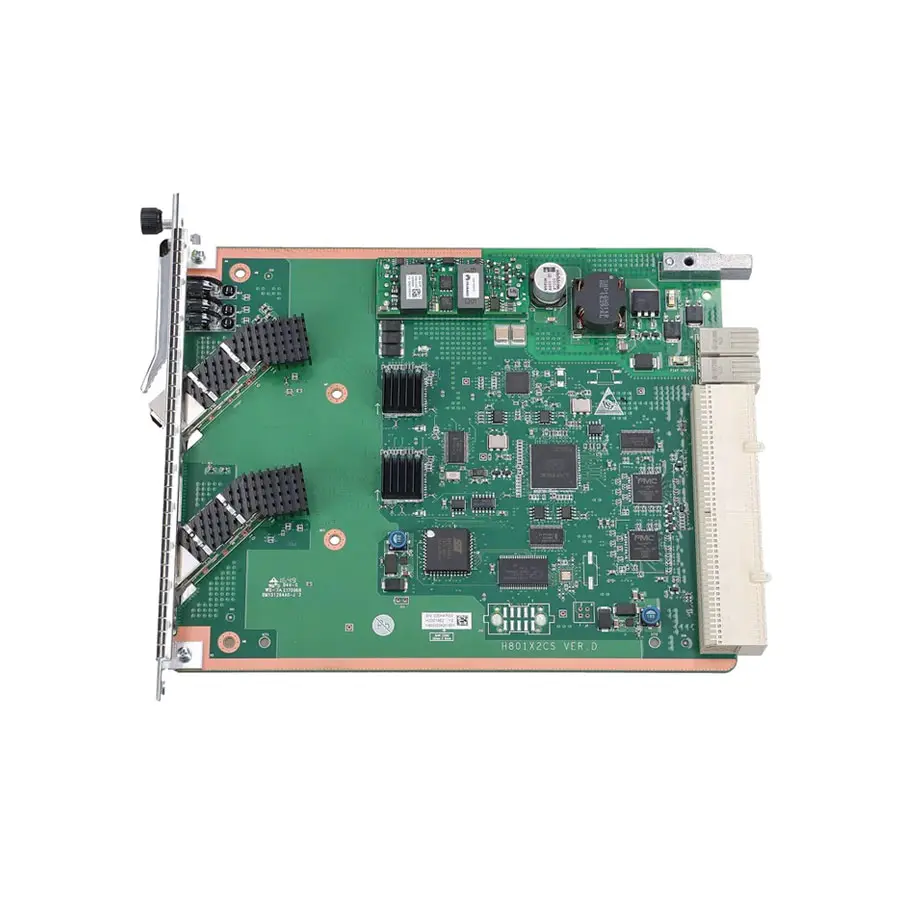

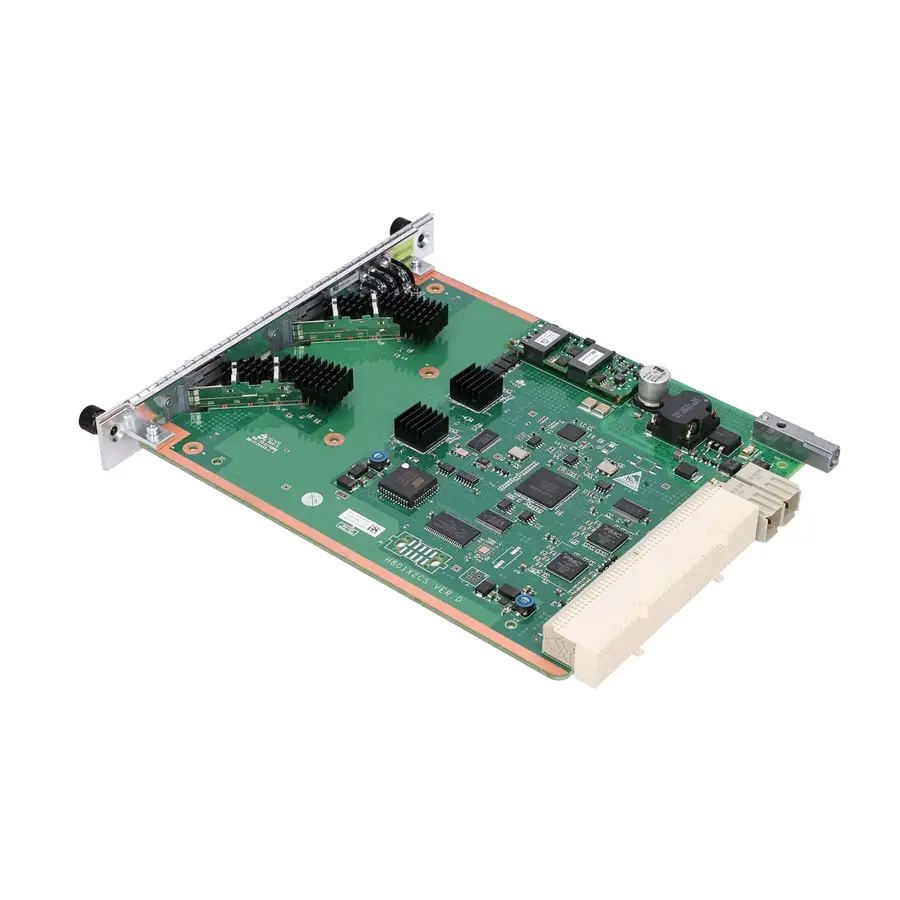

Huawei 5680T MA5683T 2-port 10GE/GE optical uplink GIU interface board
1588ACR supported
Link aggregation supported
Maximum Frame Size (bytes): 2052
Pluggable optical module for different reaches
Link aggregation, increasing bandwidths and enhancing reliability
Various of bandwidths, switchable port working mode, meeting the needs of bandwidth & smooth evolution of customers
| Board Specification | ||||
| Power Consumption | Static: 7W Maximum: 9W |
|||
| MAX Frame Size | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. | |||
| H802X2CS One-channel two-fiber bi-directional optical module | ||||
| Operating Wavelength | 850 nm | 1310 nm | 1550 nm | 1550 nm |
| Encapsulation Type | SFP+ | SFP+ | SFP+ | SFP+ |
| Port Rate | 10 Gbit/s | 10 Gbit/s | 9.95 Gbit/s-11.10 Gbit/s | 9.95 Gbit/s-10.31 Gbit/s |
| Minimum Output Optical Power | -7.30 dBm | -8.20 dBm | -4.70 dBm | 0 dBm |
| Maximum Output Optical Power | -1.00 dBm | 0.50 dBm | 4.00 dBm | 4.00 dBm |
| Maximum Receiver Sensitivity | -11.10 dBm | -12.60 dBm | -14.10 dBm | -24.00 dBm |
| Optical Connector Type | LC | LC | LC | LC |
| Optical Fiber Type | Multi-mode | Single-mode | Single-mode | Single-mode |
| Reach | 0.30 km | 10.00 km | 40.00 km | 80.00 km |
| Overload Optical Power | -1.0 dBm | 0.5 dBm | 0.5 dBm | -7.0 dBm |
| Extinction Ratio | 3.0 dB | 3.5 dB | 3.5 dB | 9.0 dB |
