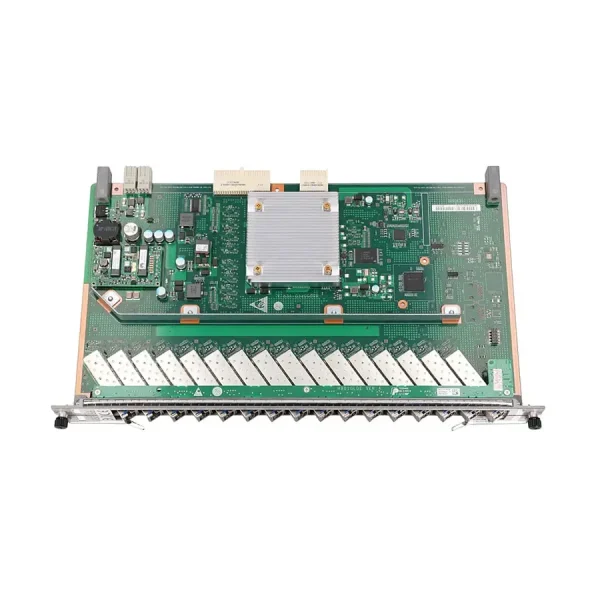

H806GPFD MA5600T GPON Board

Rated 5.00 out of 5 based on 3 customer ratings

(3 customer reviews)

Huawei MA5680T MA5683T MA5608T OLT 16-port GPON interface board

Module

B+, C+, C++

Brand

Huawei

Quote now

Description

H806GPFD Features:

Huawei MA5680T MA5683T and MA5608T 16-port GPON board
Forwarding capability: 40Gbit/s
T-CONTS per PON port: 1024
Service flows per PON Board: 16368
MAX frame size: 2004 bytes; 9216 bytes (jumbo frame enabled)
MAX MAC address: 32768
Available DBA bandwidth (based on single port): 1238784kbit/s
Maximum split ratio：1：128
1588v2 Supported
4-level HQoS supported, improving user experience
Variable-length OMCI supported, improving upgrade efficiency and reducing break off time

Specification

Board Specification
Power Consumption	Static: 20 W Maximum: 46 W
MAX Frame Size	2004 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H806GPFD GPON Optical Module Specification
Type	Class B+	Class C+	Class C++
Operating Wavelength	Tx: 1490 nm	Tx: 1490 nm	Tx: 1490 nm
Operating Wavelength	Rx: 1310 nm	Rx: 1310 nm	Rx: 1310 nm
Encapsulation Type	SFP	SFP	SFP
Port Rate	Tx: 2.488 Gbit/s	Tx: 2.488 Gbit/s	Tx: 2.488 Gbit/s
Port Rate	Rx: 1.244 Gbit/s	Rx: 1.244 Gbit/s	Rx: 1.244 Gbit/s
Minimum Output Optical Power	1.5 dBm	3 dBm	6 dBm
Maximum Output Optical Power	5 dBm	7 dBm	10 dBm
Maximum Receiver Sensitivity	-28 dBm	-32 dBm	-35 dBm
Optical Connector Type	SC	SC	SC
Optical Fiber Type	Single-mode	Single-mode	Single-mode
Overload Optical Power	-8 dBm	-12 dBm	-15 dBm
Extinction Ratio	8.2 dB	8.2 dB	8.2 dB

PACKAGE INFO

Model	QTY/CTN	G.W/CTN (kg)	Dimension/CTN (cm)	CBM/CTN (m³)
H806GPFD	1	3	50338	0.013
