Name: Huawei H802SCUN MA5600T Control Board Best Price and Compatible Firmware - fiberolt.com
Brand: Huawei
Rating: 5.00 (1 reviews)

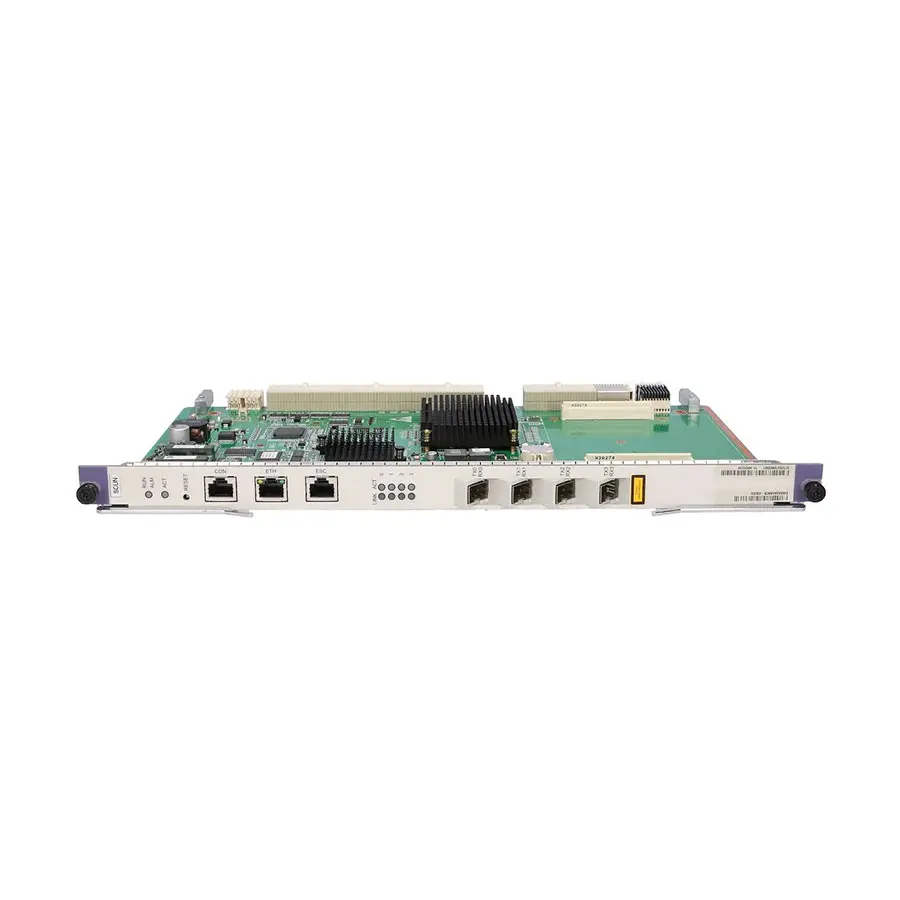

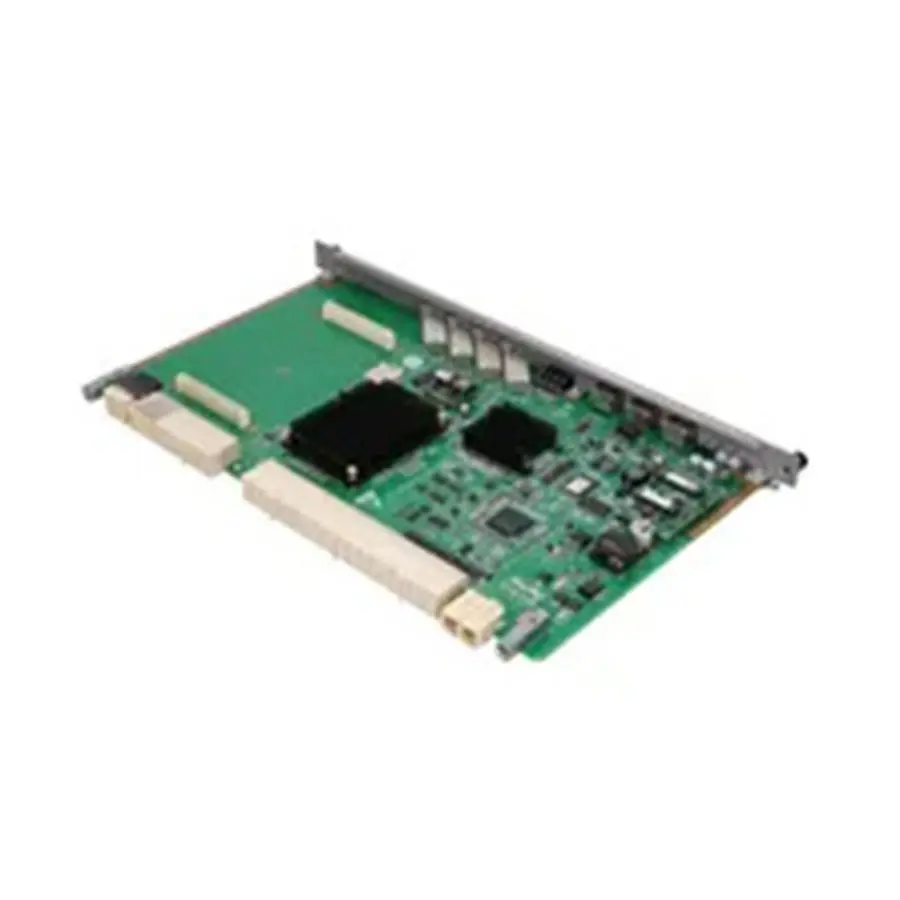

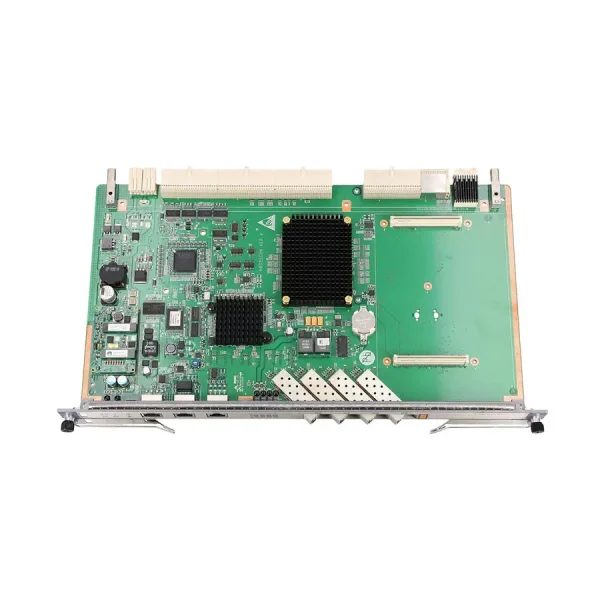

H802SCUN MA5600T Control Board

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Huawei MA5683T MA5680T OLT main control board

Brand

Huawei

Quote now

Description

H802SCUN Features:

H802SCUN, MA5683T MA5680T main control board
Switching capacity:
480 Gbit/s (active/standby mode)
960 Gbit/s (load sharing mode)
Bandwidth per slot:
10 Gbit/s (active/standby mode)
20 Gbit/s (load sharing mode)
IPv6/IPv4 routing table: 5120
Service port: 32768
ARP table: 8192
Supports integrated optical copper access for GPON, P2P, xDSL, and voice services
Supports up to 960 Gbit/s switching capacity
Supports active/standby mode and load sharing mode, doubling processing performance
Supports ISSU, saving the upgrade interruption time
Supports 1588v2 by working together with the H801CKMC daughter board
Supports 1588v2, and 1588 ACR by working together with the H801CKMD daughter board

Specifications

Board Specification
Power Consumption	Static: 30 W
	Maximum: 50 W
MAX Frame Size	2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.

Reviews (1)

1 review for H802SCUN MA5600T Control Board

Edmund – May 19, 2024

Rated 5 out of 5
Stock up some H802SCUN in our warehouse as usual, then fast response for my local customers.
