Name: Huawei H807GPBD MA5600T GPON Board Best Price and datasheet - fiberolt.com
Brand: Huawei
Rating: 5.00 (8 reviews)

Description

H807GPBD Features:

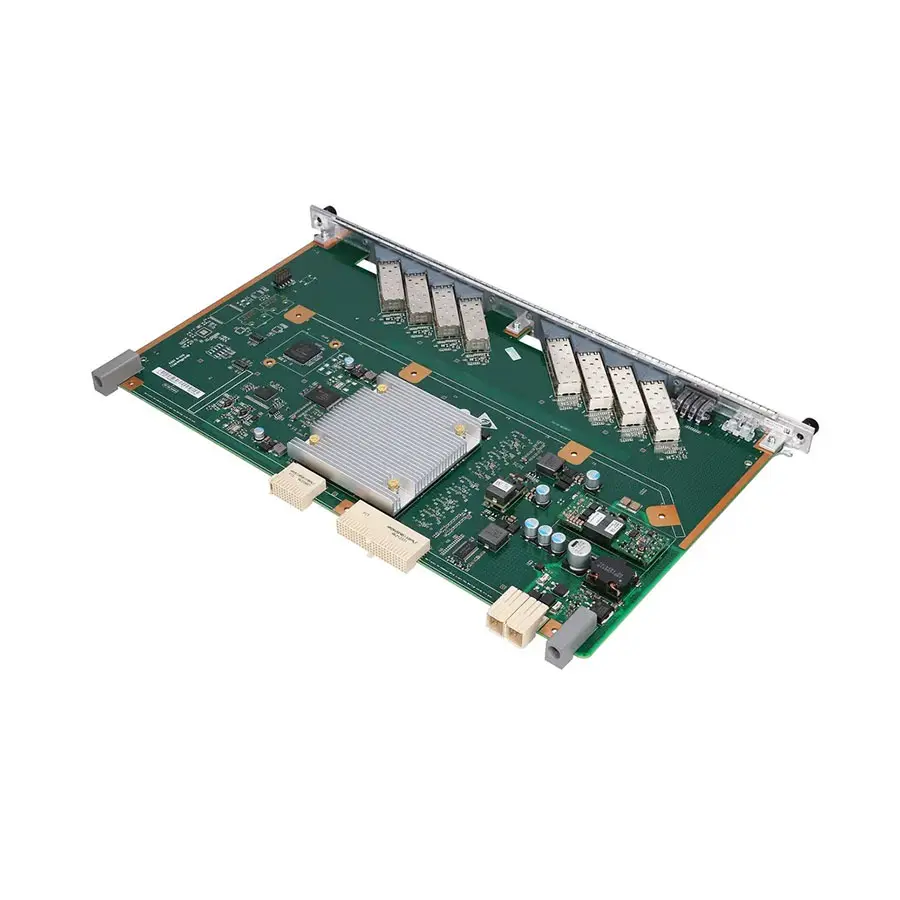

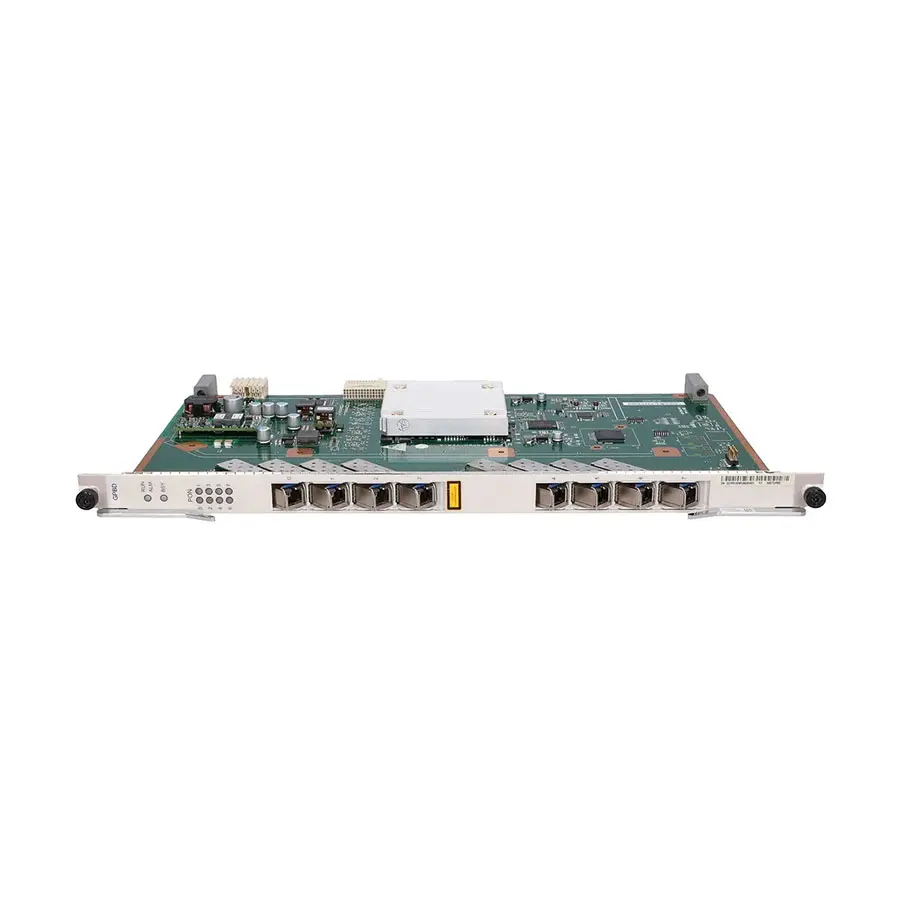

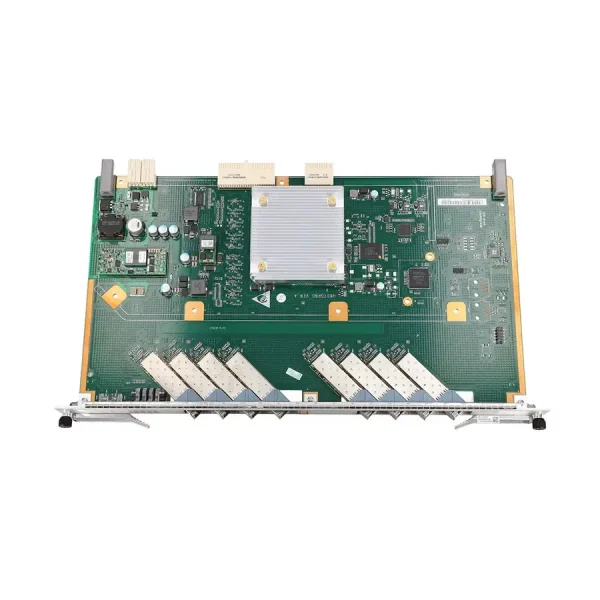

Huawei MA5680T MA5683T MA5608T 8-port GPON board
Forwarding capability: 20Gbit/s
T-CONTS per PON port: 1024
Service flows per PON Board: 8184
MAX frame size: 2004 bytes; 9216 bytes (jumbo frame enabled)
MAX MAC address: 16384
Available DBA bandwidth (based on single port): 1238784kbit/s
Maximum split ratio：1：128
1588v2 Supported
4-level HQoS supported, improving user experience
Variable-length OMCI supported, improving upgrade efficiency and reducing break off time
1:64 eOTDR, supporting accurate fault demarcation andquick fault locating

Specification

Board Specification
Power Consumption	Static: 25 W Maximum: 38 W
MAX Frame Size	2004 bytes After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported
H807GPBD GPON Optical Module Specification
Type	Class B+	Class C+	Class C++
Operating Wavelength	Tx: 1490 nm	Tx: 1490 nm	Tx: 1490 nm
Operating Wavelength	Rx: 1310 nm	Rx: 1310 nm	Rx: 1310 nm
Encapsulation Type	SFP	SFP	SFP
Port Rate	Tx: 2.488 Gbit/s	Tx: 2.488 Gbit/s	Tx: 2.488 Gbit/s
Port Rate	Rx: 1.244 Gbit/s	Rx: 1.244 Gbit/s	Rx: 1.244 Gbit/s
Minimum Output Optical Power	1.5 dBm	3 dBm	6 dBm
Maximum Output Optical Power	5 dBm	7 dBm	10 dBm
Maximum Receiver Sensitivity	-28 dBm	-32 dBm	-35 dBm
Optical Connector Type	SC	SC	SC
Optical Fiber Type	Single-mode	Single-mode	Single-mode
Overload Optical Power	-8 dBm	-12 dBm	-15 dBm
Extinction Ratio	8.2 dB	8.2 dB	8.2 dB

PACKAGE INFO

Model	QTY/CTN	G.W/CTN (kg)	Dimension/CTN (cm)	CBM/CTN (m³)
H807GPBD	1	3	50338	0.013
