Home Switches HUAWEI SWITCH S6720 Series S6720S-32X-LI-32S-AC
Placeholder
S6720S-16X-LI-16S-AC
Back to products
Placeholder
S6720S-26Q-LI-24S-AC
Awaiting product image
Huawei

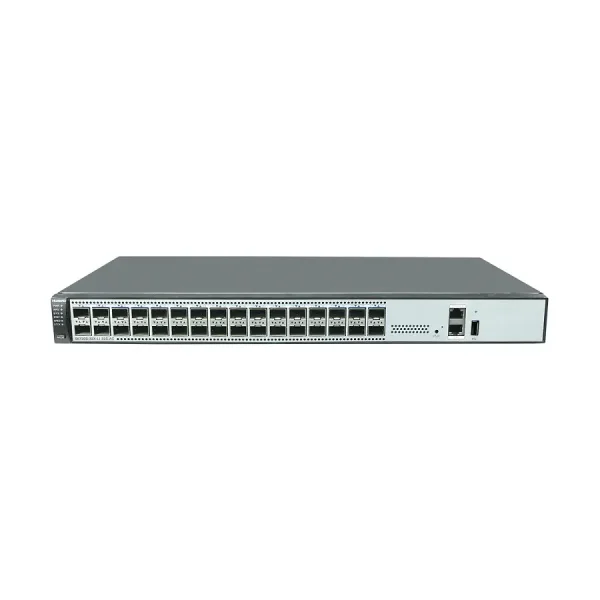

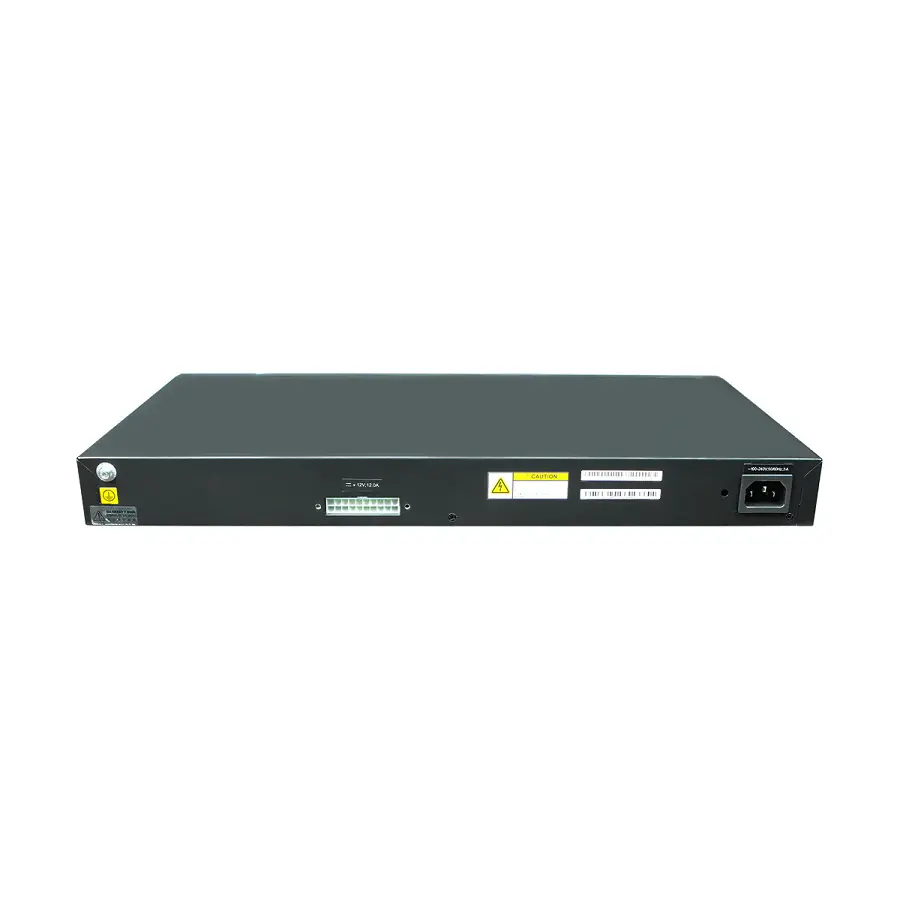

S6720S-32X-LI-32S-AC

S6720S-32X-LI-32S-AC (32*10GE SFP+, 1*AC power fixed)

Brand

Huawei

Rate

10G

Port

32 ports

Quote now
SKU: 98010694 Category: S6720 Series
Share:
  • Description
  • Specification
  • Reviews (0)
  • Shipping & Delivery
Description

The Huawei S6720S-32X-LI-32S-AC is a high-density, 10 Gigabit Ethernet (GE) fixed switch from Huawei’s S6720-LI and S6720S-LI series. It’s designed to provide robust and scalable access layer connectivity for demanding network environments like enterprise campus networks and data centers.

Here’s an introduction to its key features:

Core Specifications:

  • 32 x 10GE SFP+ Ports: This is its most prominent feature, offering a high port density of 10 Gigabit Ethernet SFP+ ports. This allows for extensive high-speed connectivity to numerous servers, workstations, or other network devices requiring significant bandwidth. These ports typically support auto-sensing for GE speeds as well, providing deployment flexibility.
  • Built-in AC Power Supply: The “-AC” in the model name indicates that it includes a built-in AC power module, simplifying power deployment.
  • Redundant Power Supply (RPS) Support: For enhanced reliability and uninterrupted operation, the switch supports an external Redundant Power Supply (RPS) unit (e.g., Huawei RPS1800). This provides power redundancy in case of a single power supply failure.
  • High Performance:
    • Switching Capacity: 1.28 Tbit/s (terabits per second), ensuring non-blocking, wire-speed forwarding across all its ports.
    • Packet Forwarding Rate: 240 Mpps (million packets per second), demonstrating its capability to process a high volume of network traffic efficiently.

Key Capabilities and Applications:

  • High-Density 10GE Access: Its primary role is to provide high-bandwidth access in environments where many devices require 10GE connectivity.
  • Campus Networks: Ideal for the access layer of large campus networks, delivering high-speed connections to user devices, servers, and departmental aggregation points.
  • Data Center Networks: Well-suited for the access layer within data centers, connecting racks of 10GE servers and ensuring rapid data exchange.
  • Comprehensive Security: The switch is equipped with various security features to protect against common network threats, including:
    • Defense against DoS (Denial of Service), ARP, and ICMP attacks.
    • DHCP snooping to prevent unauthorized DHCP servers and IP/MAC spoofing.
    • 802.1X and centralized MAC address authentication for strict user access control.
    • Port security and MAC address limits to mitigate MAC address table exhaustion attacks.
  • Advanced QoS (Quality of Service): It supports sophisticated QoS mechanisms to ensure the priority of critical applications like voice and video:
    • Traffic classification based on various criteria (e.g., ACLs, 802.1p, VLAN IDs, MAC addresses).
    • Flow-based two-rate three-color CAR (Committed Access Rate).
    • Multiple queue scheduling algorithms (WRR, DRR, PQ, WRR+PQ, DRR+PQ).
  • High Reliability: To ensure network uptime, it supports various redundancy protocols:
    • STP/RSTP/MSTP for loop prevention.
    • RRPP (Rapid Ring Protection Protocol), Smart Link, SEP (Smart Ethernet Protection), and G.8032 ERPS (Ethernet Ring Protection Switching) for fast protection switchover in various topologies.
    • Enhanced Trunk (E-trunk) for inter-device link aggregation and load balancing.
  • Flexible Management:
    • iStack Technology: Allows multiple physical switches to be virtualized into a single logical switch, simplifying management and enabling scalability. Any 10GE SFP+ port can be configured as a stack port.
    • Supports various management interfaces including CLI, Web NMS, and SNMPv1/v2/v3.
    • Features like automatic configuration, plug-and-play, USB-based deployment, and remote upgrades simplify operations and maintenance.
  • Layer 3 Routing: Provides essential IPv4 routing (Static, RIP, OSPF, VRRP, policy-based routing) and IPv6 routing (Static, RIPng, OSPFv3) for network segmentation and efficient inter-VLAN communication.

The “S” in S6720S-32X-LI-32S-AC often denotes a slightly simplified or specific variant compared to the S6720-32X-LI-32S-AC, but generally, they share core characteristics as high-performance 10GE access switches.

Specification

Specification

Item Description
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 42.8 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection NA
Power supply surge protection ±6 kV in differential mode, ± 6 kV in common mode
Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.)
Weight (including package) 4.3 kg (9.48 lb)
Stack ports Any 10GE SFP+ ports (a maximum of 16 physical ports)
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 108.5 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 71.8 W
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Short-term operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:

  • The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
  • The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
  • The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.

The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.

The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 46.4 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
Part number 98010694
