Home Switches HUAWEI SWITCH S6720 Series S6720-16X-LI-16S-AC
Placeholder

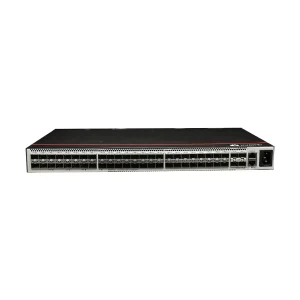

S5731-S48S4X-A
Back to products
Placeholder
S6720-32X-LI-32S-AC
Awaiting product image
Huawei

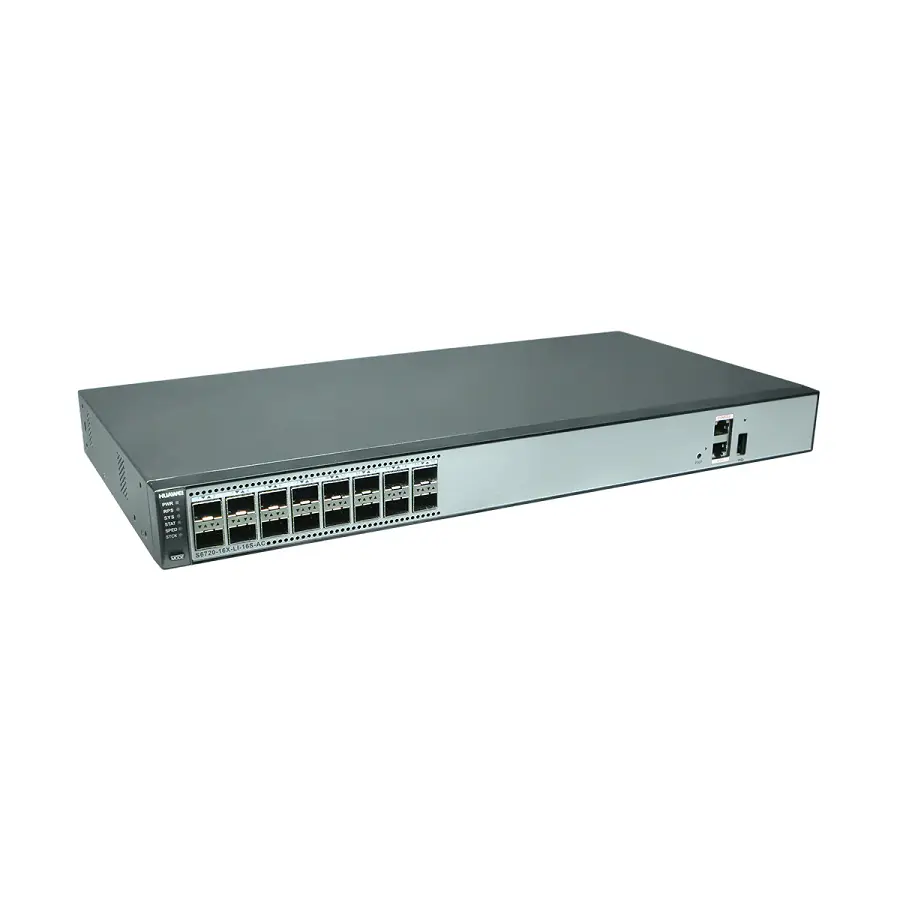

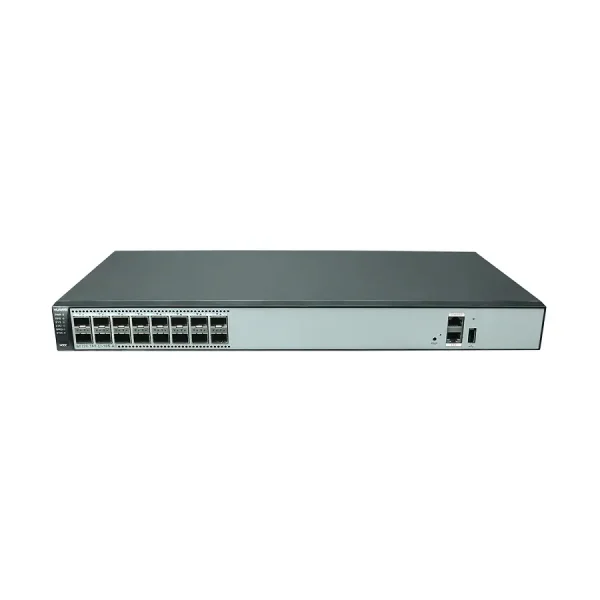

S6720-16X-LI-16S-AC

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

S6720-16X-LI-16S-AC (16*10GE SFP+, 1*AC power fixed)

Brand

Huawei

Rate

10G

Port

16 ports

Quote now
SKU: 98010687 Category: S6720 Series
Share:
  • Description
  • Specification
  • Reviews (1)
  • Shipping & Delivery
Description

The Huawei S6720-16X-LI-16S-AC is a next-generation, simplified 10GE fixed switch from Huawei’s S6720-LI series. It’s designed to provide high-performance 10 Gigabit Ethernet access and can be utilized in various network environments, particularly as an access switch in campus networks and data center networks.

Hee’s an introduction to its key features and specifications:

Key Features:

  • High-Speed 10GE Access: It comes equipped with 16 x 10 Gigabit Ethernet (GE) SFP+ ports, offering line-rate 10GE access.
  • Uplink Capabilities: While its primary role is access, it supports 40GE uplink ports (though this specific model has 16 x 10GE SFP+ ports, other models in the S6720-LI series also offer 40GE QSFP+ uplink options).
  • Built-in AC Power: It features a built-in AC power supply and supports Redundant Power Supply (RPS) for enhanced reliability.
  • High Performance:
    • Switching Capacity: 1.28 Tbit/s
    • Packet Forwarding Rate: 240 Mpps
  • Comprehensive Security:
    • Supports various security features like DHCP snooping, strict ARP learning, centralized MAC address authentication, and 802.1X authentication.
    • Includes IP source check to prevent DoS attacks.
    • Can limit the number of MAC addresses learned on a port to prevent MAC address entry exhaustion.
  • Robust QoS: Supports traffic classification based on ACLs, 802.1p fields, VLAN IDs, source MAC addresses, and Ethernet types. It offers flow-based two-rate three-color CAR and multiple queue scheduling algorithms (WRR, DRR, PQ, WRR+PQ, DRR+PQ) to ensure quality for voice, video, and data services.
  • Management and Maintenance: Supports SNMPv1/v2/v3, CLI, Web NMS, NTP, SSH v2, HWTACACS, RMON, log hosts, and port-based traffic statistics.
  • Layer 3 Features: Provides IPv4 routing capabilities (Static routing, RIP, OSPF, VRRP, policy-based routing) and IPv6 routing (Static routing, RIPng).
  • VLAN Features: Supports 4K VLANs, Guest VLAN, voice VLAN, VLAN assignment based on various criteria, VLAN mapping, and QinQ.
  • Compact Design: Designed with a compact form factor for flexible deployment.

Typical Applications:

  • 10GE Access Layer in Campus Networks: Providing high-bandwidth connectivity for endpoints and servers within an enterprise campus.
  • Data Center Networks: Serving as an access switch in data center environments, supporting high-speed server connectivity.

In essence, the Huawei S6720-16X-LI-16S-AC is a powerful and versatile 10GE switch suitable for building scalable, reliable, manageable, and secure network infrastructures.

Specification

Specification

Item Description
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 39.2 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection NA
Power supply surge protection ±6 kV in differential mode, ± 6 kV in common mode
Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.)
Weight (including package) 4.1 kg (9.04 lb)
Stack ports Any 10GE SFP+ ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 67.9 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 45.2 W
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Short-term operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:

  • The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
  • The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
  • The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.

The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.

The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 46.5 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
Part number 98010687
