Home Switches HUAWEI SWITCH S6720 Series S6720-26Q-LI-24S-AC
Placeholder
S6720-32X-LI-32S-AC
Back to products
Placeholder
S6720S-16X-LI-16S-AC
Awaiting product image
Huawei

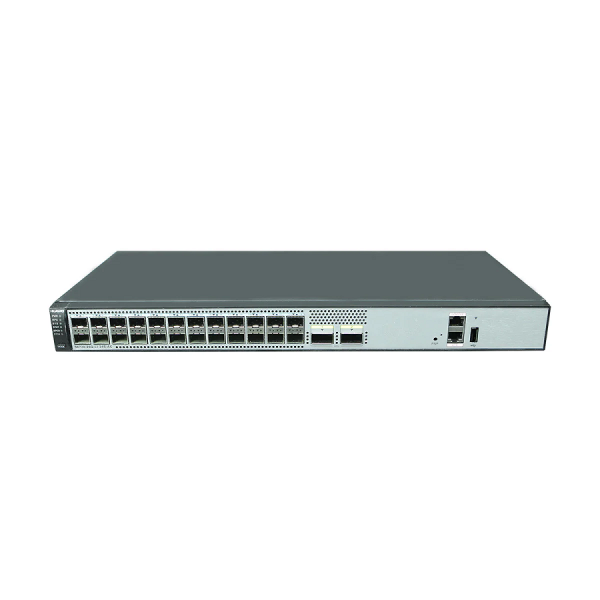

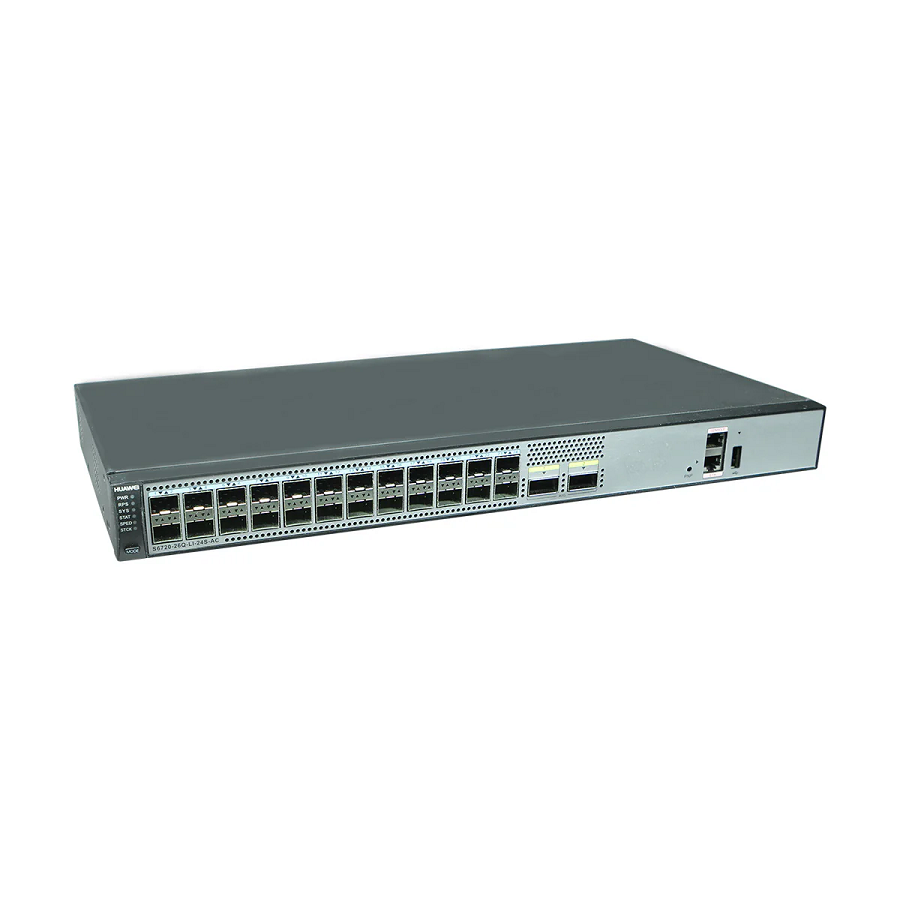

S6720-26Q-LI-24S-AC

S6720-26Q-LI-24S-AC (24 x 10GE SFP+ ports, 2 x 40GE QSFP+ ports, 1 AC power fixed)

Brand

Huawei

Rate

10G, 40G

Port

24+

Quote now
SKU: 98010684 Category: S6720 Series
Share:
  • Description
  • Specification
  • Reviews (0)
  • Shipping & Delivery
Description

The Huawei S6720-26Q-LI-24S-AC is a member of Huawei’s S6720-LI series, which are next-generation simplified 10GE fixed switches. This particular model stands out by combining high-density 10GE access with convenient 40GE uplink capabilities, making it a versatile choice for modern network architectures.

Here’s an introduction to its key features and applications:

Key Features:

  • Mixed Port Density:
    • 24 x 10GE SFP+ ports: These provide ample high-speed connectivity for a large number of 10 Gigabit Ethernet devices, such as servers, high-performance workstations, or downstream access switches. These ports can often auto-sense and operate at GE speeds as well, offering deployment flexibility.
    • 2 x 40GE QSFP+ ports: These two 40 Gigabit Ethernet ports serve as powerful uplinks, allowing the switch to connect to the core or aggregation layer of a network with high bandwidth. Importantly, each 40GE QSFP+ port can typically be split into four 10GE ports, offering further flexibility in connecting to other 10GE devices if needed.
  • Built-in AC Power with RPS Support: It comes with an integrated AC power supply and supports connection to an external Redundant Power Supply (RPS) for enhanced power reliability and continuous operation, crucial for critical network services.
  • High Performance:
    • Switching Capacity: 1.28 Tbit/s (terabits per second). This ensures non-blocking, wire-speed forwarding across all its high-density ports.
    • Packet Forwarding Rate: 240 Mpps (million packets per second). This indicates its strong capability to process a large volume of network traffic efficiently.
  • Comprehensive Security Policies: The switch incorporates a wide array of security features to protect the network from various attacks, including:
    • Defense against DoS (Denial of Service), ARP, and ICMP flood attacks.
    • DHCP snooping to prevent unauthorized DHCP servers and IP/MAC spoofing.
    • 802.1X authentication and centralized MAC address authentication for strict user access control.
    • Port security and MAC address learning limits to prevent malicious MAC address table exhaustion.
  • Advanced QoS (Quality of Service): It provides robust QoS mechanisms to ensure the priority of critical applications:
    • Traffic classification based on various criteria (e.g., 5-tuple, IP preference, DSCP, VLAN ID).
    • Flow-based two-rate three-color Committed Access Rate (CAR).
    • Multiple queue scheduling algorithms (WRR, DRR, PQ, WRR+PQ, DRR+PQ) to guarantee the performance of voice, video, and data services.
  • High Reliability: Supports various redundancy protocols and technologies to ensure network uptime, such as:
    • STP/RSTP/MSTP for loop prevention.
    • RRPP (Rapid Ring Protection Protocol), Smart Link, SEP (Smart Ethernet Protection), and G.8032 ERPS (Ethernet Ring Protection Switching) for fast protection switching in various network topologies.
    • Enhanced Trunk (E-trunk) for inter-device link aggregation.
  • Flexible Management and Maintenance:
    • Supports iStack technology, allowing multiple switches to be virtualized into a single logical device for simplified management and increased network scalability.
    • Offers various management interfaces (CLI, Web NMS, SNMPv1/v2/v3).
    • Supports automatic configuration, plug-and-play, USB-based deployment, and batch remote upgrades.
    • Includes network diagnostic tools like Virtual Cable Test (VCT) and Ethernet OAM.
  • Layer 3 Routing: Provides essential IPv4 routing capabilities (Static, RIP, OSPF, VRRP, policy-based routing) and IPv6 routing (Static, RIPng, OSPFv3) for network segmentation and inter-VLAN routing.

Typical Applications:

  • 10GE Access Layer in Campus Networks: This is a primary application, providing high-bandwidth access for servers, power users, and other network devices within an enterprise or educational campus. The 40GE uplinks connect efficiently to the campus aggregation or core layer.
  • Data Center Networks (Access Layer): It can serve as a crucial access switch in data centers, providing high-speed connectivity to racks of 10GE servers and utilizing the 40GE ports for high-capacity uplinks to the data center’s spine or aggregation switches.

In summary, the Huawei S6720-26Q-LI-24S-AC is a robust, high-performance, and feature-rich 10GE switch with valuable 40GE uplink capabilities, making it an excellent choice for demanding access layer deployments in both campus and data center environments.

Specification

Specification

Item Description
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 39.2 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection NA
Power supply surge protection ±6 kV in differential mode, ± 6 kV in common mode
Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.)
Weight (including package) 4.2 kg (9.26 lb)
Stack ports
  • Any 10GE SFP+ ports (a maximum of 16 physical ports)
  • Any 40GE QSFP+ ports (a maximum of 2 physical ports)
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 100.2 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 67.1 W
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Short-term operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:

  • The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
  • The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
  • The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.

The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.

The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 46.5 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
Part number 98010684
