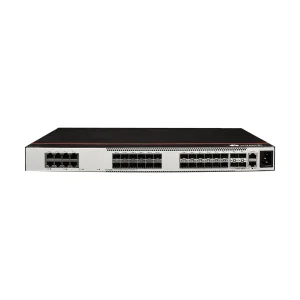

S5731-S32ST4X-D
Back to products
Placeholder
S5731-S48S4X-A
Awaiting product image
Huawei

S5731-S48S4X

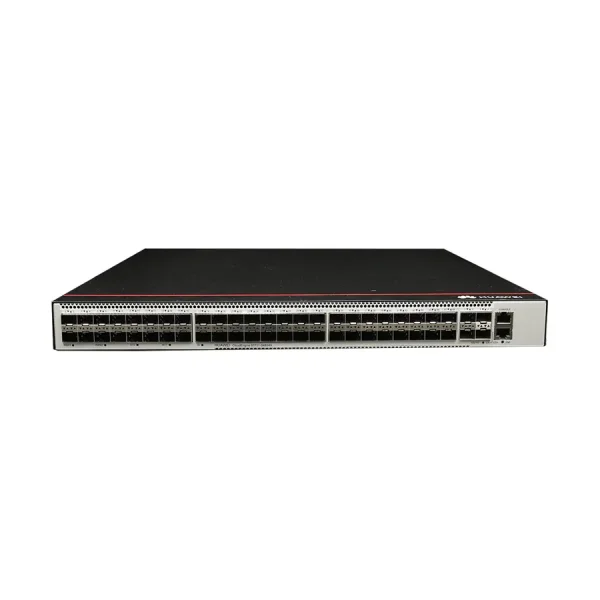

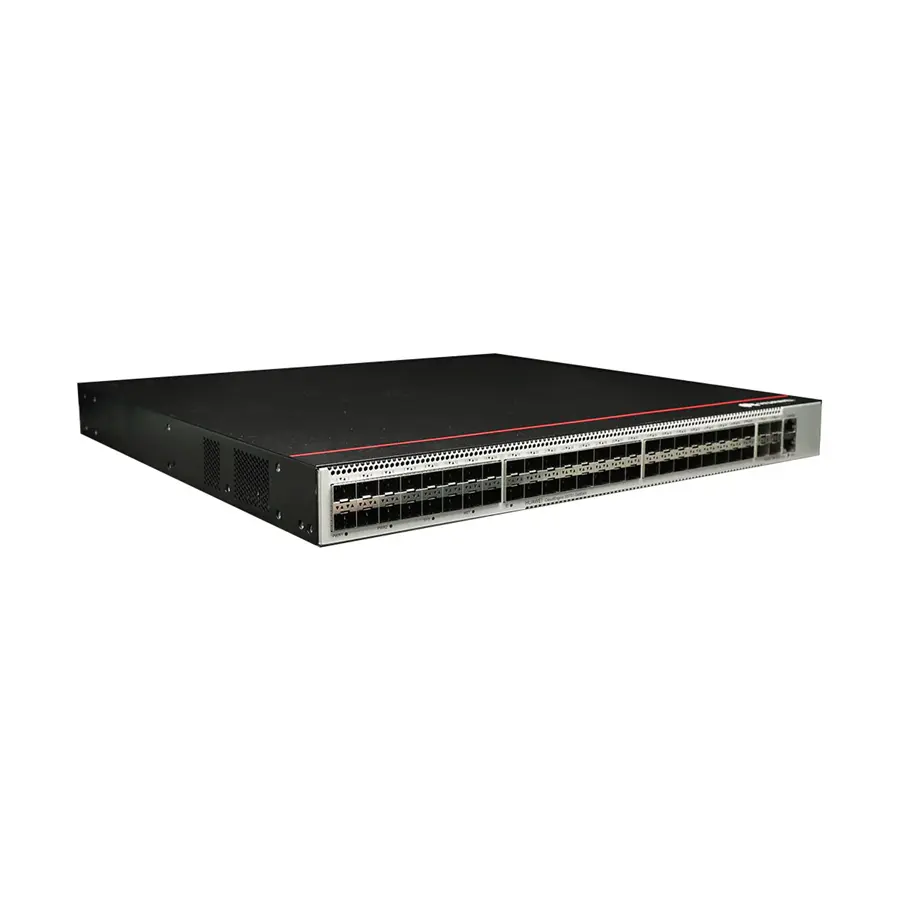

CloudEngine S5731-S48S4X (48*GE SFP ports, 4*10GE SFP+ ports, without power module)



Brand

Huawei
Rate

10G, GE
Port

48+
Quote now
SKU: 98011805 Category:
Description
S5731-S48S4X

48*GE SFP ports, 4*10GE SFP+ ports, without power module

Applicable power modules
  • PAC150S12-R (150 W AC Power Module)
  • PDC180S12-CR (180 W DC Power Module)
  • PAC600S12-CB (600 W AC&240 V DC Power Module)
  • PAC600S12-DB (600 W AC&240 V DC Power Module)
  • PAC600S12-EB (600 W AC&240 V DC Power Module)
Performance

MAC Address: 64K
Super-VLAN specification: 256
Sub-VLAN specification: 1K
Flash: 1 GB
Frequency: 1.4 GHz
Cores: 4
Memory (RAM): 2GB
Forwarding performance: 125 Mpps
Switching capacity: 308 Gbps/672 Gbps

Huawei CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The
CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

Specification

Specification

Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.40 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 5.12 kg (11.29 lb)
Weight with packaging [kg(lb)] 7.65 kg (16.87 lb)
Typical power consumption [W] 93.69 W
Typical heat dissipation [BTU/hour] 319.68 BTU/hour
Maximum power consumption [W] 128.89 W (150 W AC or 180 W DC)

141.96 W (600 W AC)
Maximum heat dissipation [BTU/hour] 439.79 (150 W AC or 180 W DC)

484.38 (600 W AC)
Static power consumption [W] 50.44 W
MTBF [years] 64.97 years
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 45.47 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.79 dB(A)
Number of card slots 0
Number of power slots 2
Number of fans modules 3
Redundant power supply 1+1

Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

  • The operating temperature exceeds 45°C (113°F) for a maximum of 96 consecutive hours in a year.
  • The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
  • The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V]
  • AC input: 100 V AC to 240 V AC, 50/60 Hz
  • High-voltage DC input: 240 V DC
  • DC input: –48 V DC to –60 V DC
Input voltage range [V]
  • AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
  • High-voltage DC input: 190 V DC to 290 V DC
  • DC input: –38.4 V DC to –72 V DC
Maximum input current [A] The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory 2 GB
Flash memory The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] –
Power supply surge protection [kV]
  • Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
  • Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left,front and right, air exhaustion from behind
PoE Not supported
Certification EMC certification

Safety certification

Manufacturing certification
