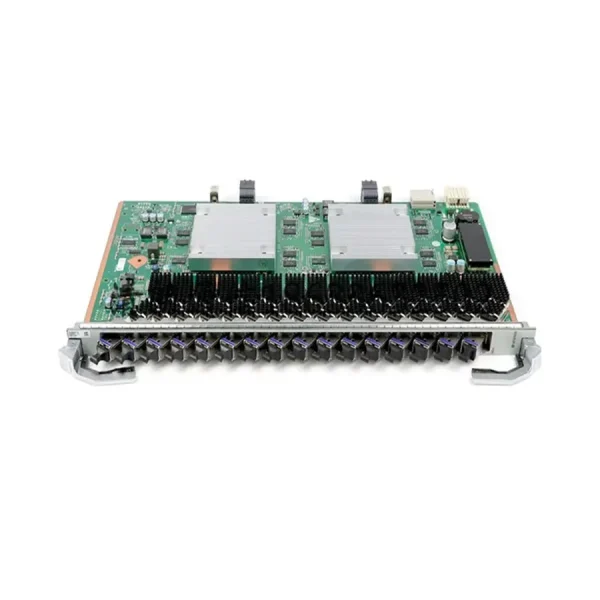

H902CSHF MA5800 XGS-PON&GPON Combo Board

(3 customer reviews)

Huawei MA5800 X2 X7 X15 X17 OLT 16-port XGS-PON&GPON Combo board

Module

B+, C+
Brand

Huawei
Enquiry
Category: Tags: , , ,
Description
H902CSHF Features:

Huawei MA5800 X2, MA5800 X7, MA5800 X15 and MA5800 X17 16-port XGS-PON&GPON Combo board
Forwarding capability: 200Gbit/s
T-CONTS per PON port: GPON:1024;XG-PON: 2048
Service flows per PON Board: 16352
MAX frame size: 2052 bytes; 9216 bytes (jumbo frame enabled)
MAX MAC address: 131072
Maximum split ratio：GPON: 1:128; XG-PON: 1:256
Rate mode:Asymmetric rate,Symmetric Rate
1588v2 Supported
4-level HQoS supported, improving user experience
Variable-length OMCI supported, improving upgrade efficiency and reducing break off time
VMOS supported, improving video troubleshooting efficiency



Specification

Specification

Board Specification
Power Consumption Static: 51 W
Maximum: 99 W
Net Weight 1.22kg

MAX Frame Size

 2052 bytes
After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
H902CSHF XGS-PON&GPON Combo PON Optical Module (SFP+)
Type Class C+ Class B+
Operating Wavelength GPON channel:
Tx: 1490 nm
Rx: 1310 nm
XGS-PON channel:
Tx: 1577 nm
Rx: 1270 nm		 GPON channel:
Tx: 1490 nm
Rx: 1310 nm
XGS-PON channel:
Tx: 1577 nm
Rx: 1270 nm
Encapsulation Type SFP+ SFP+
Port Rate GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XGS-PON channel:
Tx: 9.953 Gbit/s
Rx: 9.953/2.488 Gbit/s		 GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XGS-PON channel:
Tx: 9.953 Gbit/s
Rx: 9.953/2.488 Gbit/s
Minimum Output Optical Power GPON channel: 3 dBm
XGS-PON channel: 5 dBm		 GPON channel: 1.5 dBm
XGS-PON channel: 1 dBm
Maximum Output Optical Power GPON channel: 7 dBm
XGS-PON channel: 8 dBm		 GPON channel: 5 dBm
XGS-PON channel: 4 dBm
Maximum Receiver Sensitivity GPON channel: -32 dBm
XG-PON channel: -30.5 dBm
XGS-PON channel: -29 dBm		 GPON channel: -28 dBm
XG-PON channel: -26.5 dBm
XGS-PON channel: -25 dBm
Optical Connector Type SC SC
Optical Fiber Type Single-mode Single-mode
Overload Optical Power GPON channel: -12 dBm
XG-PON channel: -10 dBm
XGS-PON channel: -8 dBm		 GPON channel: -8 dBm
XG-PON channel: -6 dBm
XGS-PON channel: -4 dBm8.2 dB
Extinction Ratio 8.2 dB 8.2 dB

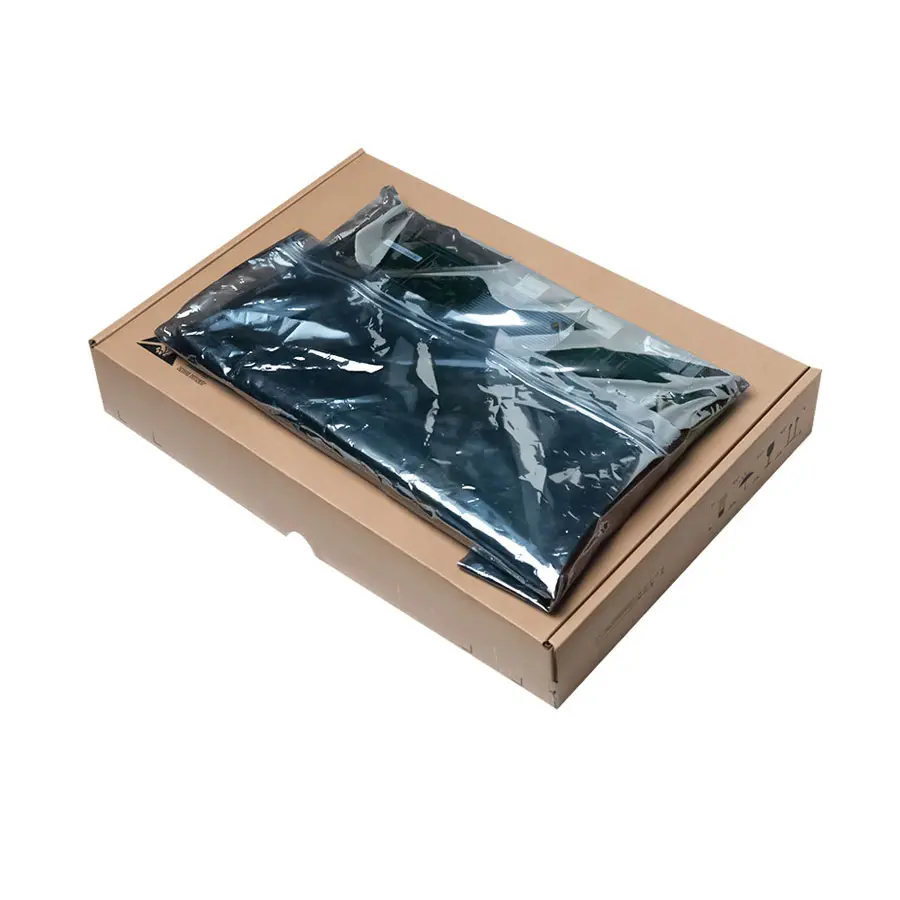

PACKAGE INFO

PACKAGE INFO

Model QTY/CTN G.W/CTN (kg) Dimension/CTN (cm) CBM/CTN (m³)
H902CSHF 1 3 50*33*8 0.013
