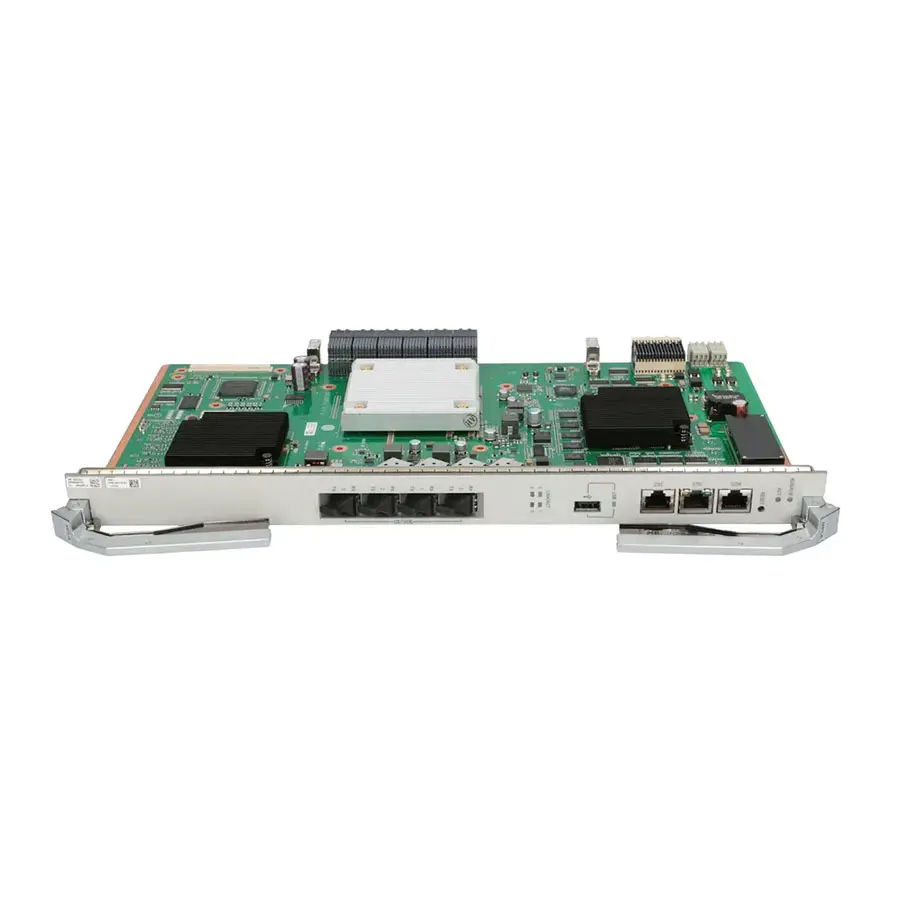

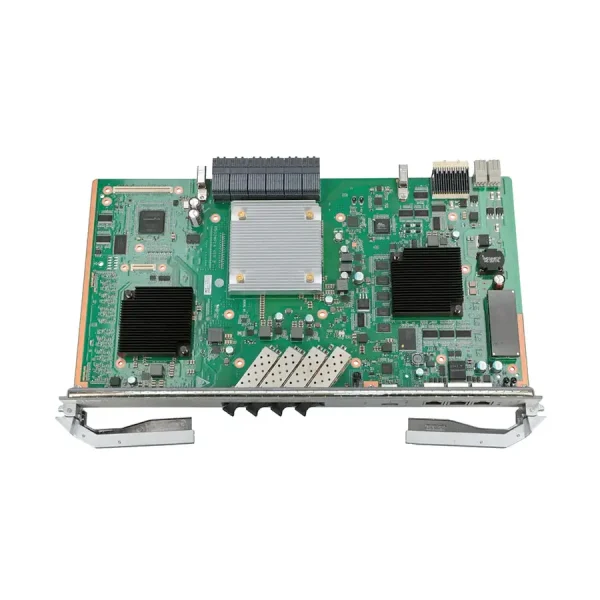

Huawei MA5800 X7 X15 X17 OLT main control board
| Control Board |
MPLB |
|---|---|
| Brand |
Huawei |
Huawei MA5800 X7 X15 X17 main control board
With 4-port 10G uplink ports, 200G bandwidth supported
Supports active/standby switchover at the control plane
Supports load sharing mode at the forwarding plane, doubling processing performance
Supports ISSU, saving the upgrade interruption time
Supports synchronization Ethernet
Supports 1588v2 and 1588ACR with proper daughter boards
| Board Specification | |||||
| Power Consumption | Static: 73W Maximum: 120W |
||||
| Net Weight | 2.17kg | ||||
| Board Comparison | |||||
| Performance | H901MPLA | H902MPLA | H903MPLA | H901MPLB | H902MPLB |
| Subrack supported | MA5800-X17/X15/X7 | ||||
| Bandwidth per slot (load balancing mode) | 100 Gbit/s | 100 Gbit/s | 100 Gbit/s | 200 Gbit/s | 200 Gbit/s |
| Upstream or cascading port | 4 x 10GE/GE | 4 x 10GE/GE | 4 x 10GE/GE | 4 x 10GE/GE | 4 x 10GE/GE |
| ALM port | No | No | No | No | No |
| BITS/TOD port | No | No | No | No | No |
| MAC address table size | 262143 | 262143 | 262143 | 262143 | 262143 |
| Access ONTs | 17408 | 17408 | 17408 | 17408 | 17408 |
| Multicast users | 17408 | 17408 | 17408 | 17408 | 17408 |
| Static programs | 4096 (earlier than V100R017C00) 8192 (V100R017C00 and later versions) |
8192 | 8192 | 4096 (earlier than V100R017C00) 8192 (V100R017C00 and later versions) |
8192 |
| Online programs | V100R016C00: 4000
V100R016C10: V100R017C10 and later versions: IPv4: 8000 |
IPv4: 8000 IPv6: 2000 |
IPv4: 8000 IPv6: 2000 |
V100R016C00: 4000
V100R016C10: V100R017C10 and later versions: IPv4: 8000 |
IPv4: 8000 IPv6: 2000 |
| IPv4 routing table size | 65536 | 65536 | 65536 | 65536 | 65536 |
| IPv6 routing table size | 16384 | 16384 | 16384 | 16384 | 16384 |
| Service ports | 139264 | 139264 | 139264 | 139264 | 139264 |
| ND table size | 16384 | 16384 | 16384 | 16384 | 16384 |
| ARP table size | 66048 (earlier than V100R017C10) 98816 (V100R017C10) 131072 (V100R018C00 and later versions) |
66048 (V100R017C00) 98816 (V100R017C10 version) 131072 (V100R018C00 and later versions) |
131072 | 66048 (earlier than V100R017C10) 98816 (V100R017C10) 131072 (V100R018C00 and later versions) |
131072 |
| Ethernet synchronization | Yes | Yes | Yes | Yes | Yes |
| 1588v2 | Yes | Yes | Yes | Yes | Yes |
| 1588ACR | Yes | Yes | Yes | Yes | Yes |
| D-CCAP | Yes | Yes | Yes | Yes | Yes |
