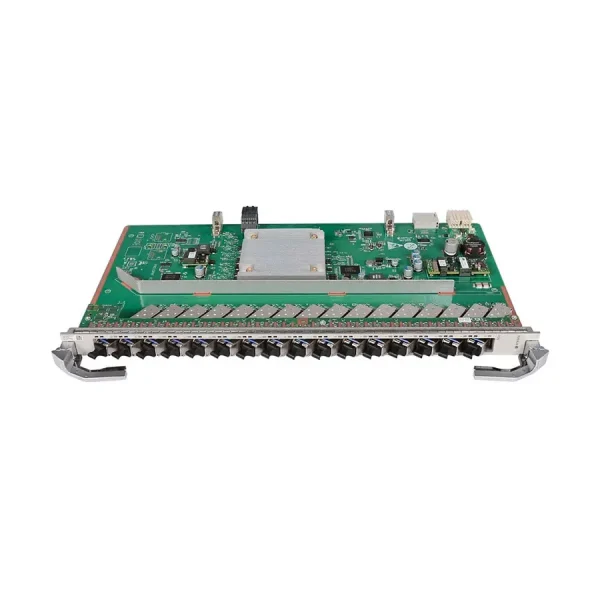

Huawei MA5800 X2 X7 X15 X17 OLT 16-port GPON interface board
| Module |
B+, C+, C++ |
|---|---|
| Brand |
Huawei |
Huawei MA5800 X2, MA5800 X7, MA5800 X15 and MA5800 X17 16-port GPON board
Application scenario:FTTH
Forwarding capability: 40Gbit/s
T-CONTS per PON port: 1024
Service flows per PON Board: 16368
MAX frame size: 2052 bytes, 9600 jumbo frame not supported
MAX MAC address: 16384
Maximum split ratio：1：128
Routes/ARP table size：65536
4-level HQoS,1588v2 and VMOS not supported
Variable-length OMCI supported, improving upgrade efficiency and reducing break off time
| Board Specification | |||
| Power Consumption | Static: 25 W Maximum: 50 W |
||
| Net Weight | 0.94 kg | ||
| MAX Frame Size | 2052 bytes | ||
| H901GPSF GPON Optical Module Specification | |||
| Type | Class B+ | Class C+ | Class C++ |
| Operating Wavelength | Tx: 1490 nm | Tx: 1490 nm | Tx: 1490 nm |
| Rx: 1310 nm | Rx: 1310 nm | Rx: 1310 nm | |
| Encapsulation Type | SFP | SFP | SFP |
| Port Rate | Tx: 2.488 Gbit/s | Tx: 2.488 Gbit/s | Tx: 2.488 Gbit/s |
| Rx: 1.244 Gbit/s | Rx: 1.244 Gbit/s | Rx: 1.244 Gbit/s | |
| Minimum Output Optical Power | 1.5 dBm | 3 dBm | 6 dBm |
| Maximum Output Optical Power | 5 dBm | 7 dBm | 10 dBm |
| Maximum Receiver Sensitivity | -28 dBm | -32 dBm | -35 dBm |
| Optical Connector Type | SC | SC | SC |
| Optical Fiber Type | Single-mode | Single-mode | Single-mode |
| Overload Optical Power | -8 dBm | -12 dBm | -15 dBm |
| Extinction Ratio | 8.2 dB | 8.2 dB | 8.2 dB |

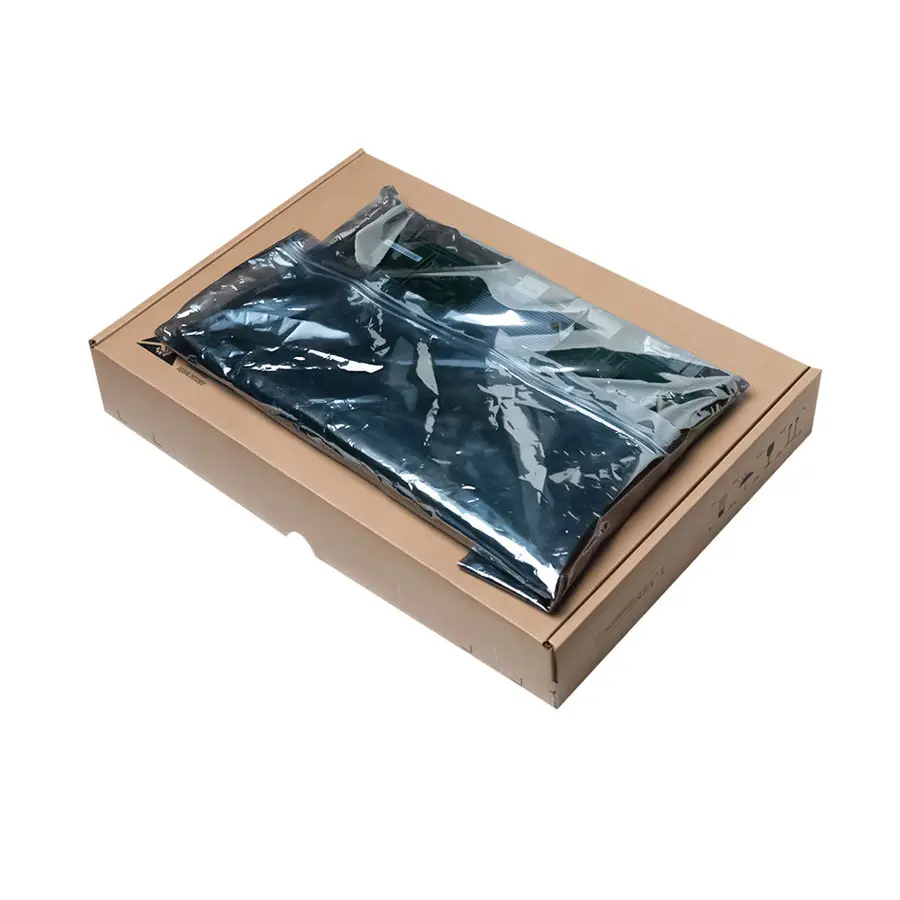

| Model | QTY/CTN | G.W/CTN (kg) | Dimension/CTN (cm) | CBM/CTN (m³) |
| H901GPSF | 1 | 3 | 50*33*8 | 0.013 |
