Huawei MA5800 X2 X7 X15 X17 OLT 16-port XG-PON&GPON Combo board
| Module |
B+, C+, D, N2a |
|---|---|
| Brand |
Huawei |

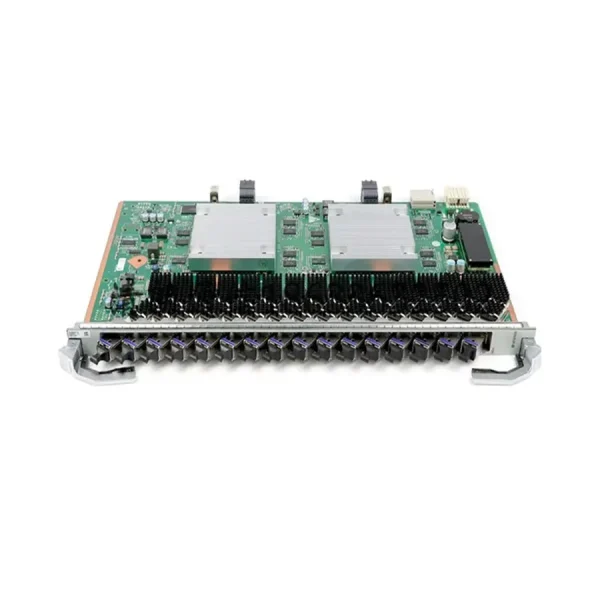

Huawei MA5800 X2, X7, X15 and X17 16-port XG-PON&GPON Combo board
Forwarding capability: 200Gbit/s
T-CONTS per PON port: GPON:1024;XG-PON: 2048
Service flows per PON Board: 16352
MAX frame size: 2052 bytes, 9600 jumno frame not supported
MAX MAC address: 32768
Maximum split ratio：GPON: 1:128; XG-PON: 1:256
Rate mode:Asymmetric rate
1588v2 Supported
Variable-length OMCI supported, improving upgrade efficiency and reducing break off time
| Board Specification | ||||
| Power Consumption | Static: 48 W Maximum: 106 W |
|||
| Net Weight | 1.21 kg | |||
| MAX Frame Size | 2052 bytes | |||
| H901CGUF XG-PON&GPON Combo PON Optical Module (SFP+) | ||||
| Type | Class B+ | N2a | Class C+ | Class D |
| Operating Wavelength | GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | SFP+ | SFP+ | SFP+ | SFP+ |
| Port Rate | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
| Minimum Output Optical Power | GPON channel: 1.5 dBm XG-PON channel: 1 dBm |
GPON channel: 3 dBm XG-PON channel: 4 dBm |
GPON channel: 3 dBm XG-PON channel: 5 dBm |
GPON channel: 6 dBm XG-PON channel: 8 dBm |
| Maximum Output Optical Power | GPON channel: 5 dBm XG-PON channel: 6 dBm |
GPON channel: 7 dBm XG-PON channel: 8 dBm |
GPON channel: 7 dBm XG-PON channel: 8 dBm |
GPON channel: 10 dBm XG-PON channel: 11 dBm |
| Maximum Receiver Sensitivity | GPON channel: -28 dBm XG-PON channel: -26.5 dBm |
GPON channel: -32 dBm XG-PON channel: -29.5 dBm |
GPON channel: -32 dBm XG-PON channel: -30.5 dBm |
GPON channel: -35 dBm XG-PON channel: -33.5 dBm |
| Optical Connector Type | SC | SC | SC | SC |
| Optical Fiber Type | Single-mode | Single-mode | Single-mode | Single-mode |
| Overload Optical Power | GPON channel: -8 dBm XG-PON channel: -7 dBm |
GPON channel: -12 dBm XG-PON channel: -9 dBm |
GPON channel: -12 dBm XG-PON channel: -10 dBm |
GPON channel: -15 dBm XG-PON channel: -13 dBm |
| Extinction Ratio | 8.2 dB | 8.2 dB | 8.2 dB | 8.2 dB |
| Model | QTY/CTN | G.W/CTN (kg) | Dimension/CTN (cm) | CBM/CTN (m³) |
| H901CGUF | 1 | 3 | 50*33*8 | 0.013 |
