ZTE ZXA10 C320 OLT

(8 customer reviews)

ZTE C320 Shelf with 2*SMXA(1, 3, 5) Main-control switching Board, DC Power

Height

2U
Width

19inch
Power Board

DC, PRAM AC
Control Board

SMXA/1, SMXA/3, SMXA/5
Brand

ZTE
Quote now
Category: Tag:
Description
ZTE ZXA10 C320 Features:

A small size, full-service optical access convergent platform, provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.
2U height, IEC 19-inch rack installation
Supports 2* service slots, 2*switching and control slots or 1*control slot and 1*power slot
ZXA10 C320 Shelf Configuration:

Supports AC power board PRAM
Supports GPON board GTGO, GTGH
Supports XGPON board GTXO, GTTO
Supports XGSPON board GTBO
Supports EPON board ETGO, ETGH
Supports 10G-EPON board ETXD, ETTO
Support 3 types main-control switching boards SMXA:
SMXA/1, with 2-port GE uplink daughter card UCDC/1
SMXA/3, with 1-port 10GE and 1-port GE uplink daughter card UCDC/3
SMXA/5, with 1-port 10GE and 1-port GE uplink daughter card UCDC/5, supports 1588v2, and clock/time synchronization
SMXA supports 128 Gbps switching capacity, 32k MAC address table
There is one DC -48V output on SMXA, if DC power is required, dual control boards can be configured; if AC power is required, an AC power board PRAM and only one control board be configured on the C320.



Specifications

Specifications

C320 Specification
Switching capacity of backplane bus 520 Gbit/s
Switching and control card 128 Gbit/s
Capacity GPON up to 32 ports
Uplink interfaces up to 4 *GE (Optical )+2*GE(Electronic) or 2*10GE(Optical)+2*GE(Optical ) +2*GE(Electronic)

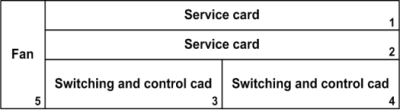

Chassis Configuration (19”) Total 5 slots
2 slots for universal line cards
2 slots for switch& control cards
1 slot for fan module
Subscriber Card Density GPON card: 8/16 ports per card
XG-PON1 card: 8 ports per card
P2Pcard: 24/48 ports per card
Uplink interface card 1*10GE optical port ( Configurable 1*GE optical port)
1*GE optical port
1*10 M/100 M/1000 M electrical Ethernet port
Power Supply DC: -48V+/-20%，-60V+/-20%;
AC: 100V~240V
Environment Operating temperature: –40°C ~65°C
Operating humidity: 5% ~ 95%
Air pressure: 70 kPa – 106 kPa
Shelf Dimensions
(Height × Width × Depth)		 86.1 mm × 482.6 mm × 270 mm
Shelf Weight (Empty) 2.5 kg
PACKAGE INFO

PACKAGE INFO

Model QTY/CTN G.W/CTN (kg) Dimension/CTN (cm) CBM/CTN (m³)
C320 1 12 60*40*26cm 0.062
