ZTE C350
ZTE ZXA10 C350 OLT
ZTE C300
C300
ZTE C300
C300
ZTE

ZTE ZXA10 C300 OLT

(6 customer reviews)

ZTE C300 Shelf with 2*SCXL/SCXM/SCTM/SCXN Switching and Control Board, 2*DC Power Board

Height

10U
Width

19inch
Power Board

DC
Control Board

SCTM, SCXL, SCXM, SCXN
Brand

ZTE
Quote now
Category: Tag:
Description
ZTE ZXA10 C300 Features:

A large-capacity AN equipment and suitable for high-density optical access application
10U height, IEC 19-inch rack installation

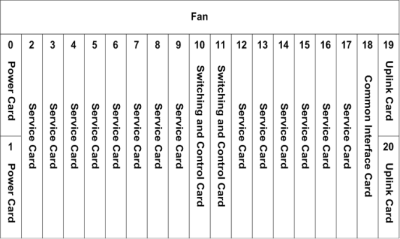

Supports 14 service slots, 2* switching and control slots, 2*ethernet uplink slots, 2*power slots
ZXA10 C300 Shelf Configuration:

Supports DC power board PRWG MAX current 30A, PRWH MAX current 40A
Supports GPON board GTGO, GTGH
Supports XGPON board GTXO, GTTO
Supports XGSPON board GTBO
Supports EPON board ETGO, ETGH
Supports 10G-EPON board ETXD, ETTO
Supports ethernet uplink card HUTQ HUVQ XUVQ XUTQ
Support 4 types main-control switching boards SCXL/SCXM/SCTM/SCXN
SCTM: 2.56 Tbps switching capacity, 256k MAC address table, 4*SFP+ 10GE optical uplink interfaces
SCXN: 480 Gbps switching capacity, 32k MAC address table, and VoIP function (with VoIP daughter-card)., 4*SFP GE optical uplink interfaces
SCXM: 480 Gbps switching capacity and 32k MAC address table
SCXL: 800 Gbps switching capacity and 32k MAC address table

Specification

Specification

Specification Description
Switching capacity of backplane bus 6.4 Tbit/s
Switching capacity of system layer 2 packet forwarding rate Line speed forwarding
Switching and control card SCXN: 480 Gbit/s
SCTM: 2.56 Tbit/s
Switching and forwarding delay Upstream: ≤600 us
Downstream: ≤200 us
Full load bit error rate <10 e-9 (full load transmission)
Management interface One serial interface (RS232)
One out-of-band NM interface (10/100BaseT)
Monitoring interface External environment monitoring box interface (serial), interfaces for temperature, humidity, smog, flood, and security, trunk node digital input/output interface
GPON interface 256/224
XG-PON1 interface 128/112
XGS-PON interface 128/112
EPON interface 256/224
10G-EPON interface 128/112
PON interface card GTGO, 8-port GPON interface card
GTGH: 16-port GPON interface card
GTXO: 8-port XG-PON1 interface card
GTBO: 8-port XGS-PON interface card
GTTO:8-port XG-PON1 interface card
ETGO:8-port EPON interface card
ETGH: 16-port EPON interface card
ETXD: 2-port asymmetric 10G-EPON interface card
ETTO:8-port asymmetric/symmetric 10G-EPON interface card
Uplink GE interface 8
Uplink 10GE interface SCXN: 8
SCTM: 16
Uplink interface card XUTQ: 4-port 10GE optical interfaces Ethernet uplink card
XUVQ:4-port 10GE optical interfaces Ethernet uplink card, supports SyncE.
GUFQ: 4-port GE optical interfaces Ethernet uplink card
GUSQ: 2-port GE and 2-port FE Ethernet uplink card
HUTQ: 2-port 10GE and 2-port GE Ethernet uplink card
HUVQ:2-port 10GE and 2-port GE Ethernet uplink card,  supports SynE
Height 10U
Dimensions 443.7 mm × 482.6 mm × 270 mm
Weight 12.5 kg
Management interface Out-of-band NM (RJ45)
Local serial port(Console)
Uplinkinterface GE/10GE
Service interface GPON/XG-PON1/XGS-PONEPON/10G-EPON Ethernet (P2P)TDM
Service cardslot 14/16
Power -48V/-60V DC,1:1
PACKAGE INFO

PACKAGE INFO

Model QTY/CTN G.W/CTN (kg) Dimension/CTN (cm) CBM/CTN (m³)
C300 1 32 60*50*64 0.192
