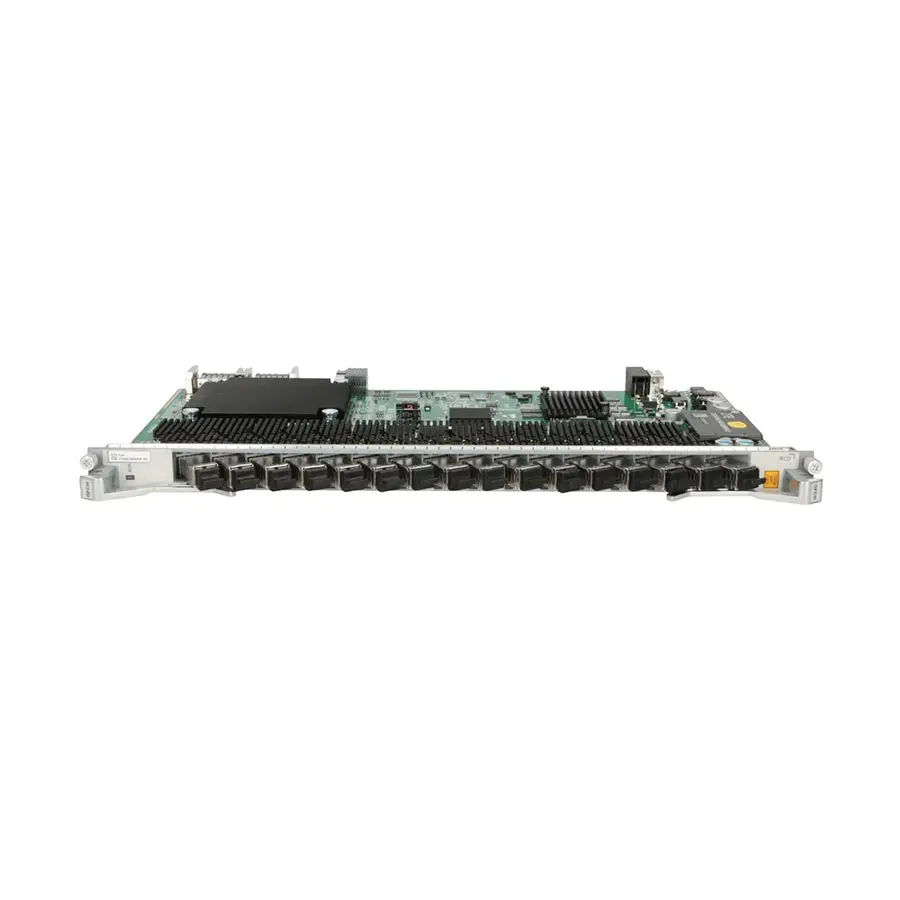

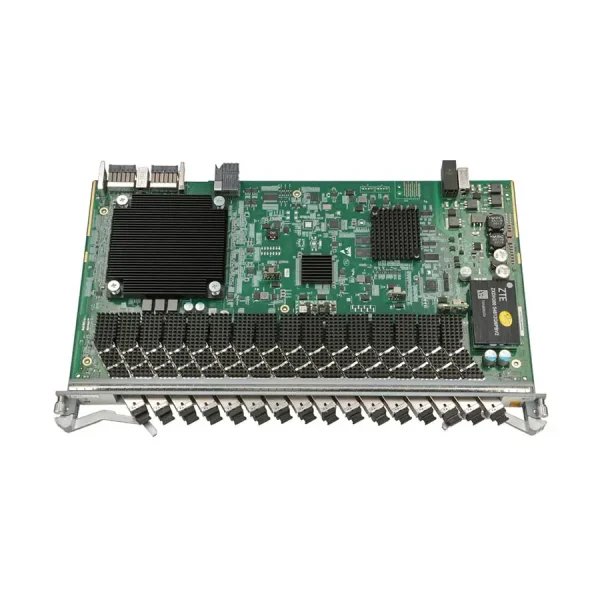

ZTE ZXA10 C620 C650 C600 OLT 16-port XGS-PON & GPON Combo Board
| Module |
B+, C+, N1, N2 |
|---|---|
| Brand |
ZTE |
ZTE C600 series OLT 16-port XGS-PON & GPON Combo Board
Supports 16 XGS-PON & GPON SFP+ hybrid interfaces
Supports XGS-PON & GPON module N1-B+, N2-C+
Maximum optical split ratio of GPON: 1:128
Maximum optical split ratio of XGS-PON: 1:128
Supports the access of XGS-PON ONUs, XG-PON ONUs and GPON ONUs
Supports OLS
Supports the ALS function of optical modules
Supports hot swapping
| Specifications | ||||
| Dimensions | 393.1 mm × 23.9 mm × 214 mm (height × width × depth) | |||
| Weight | 1.73 kg | |||
| XGS-PON & GPON Combo Module Supported | ||||
| Parameter | Single Fiber Bidirectional Optical Module, N1-B+ | Single Fiber Bidirectional Optical Module, N2-C+ | ||
| Type | XGS-PON N1 | GPON B+ | XGS-PON N2 | GPON C+ |
| Operating wavelength | Tx: 1577 nm | Tx: 1490 nm | Tx: 1577 nm | Tx: 1490 nm |
| Rx: 1270 nm | Rx: 1310 nm | Rx: 1270 nm | Rx: 1310 nm | |
| Package type | SFP+ | SFP+ | ||
| Bandwidth | Tx: 10 Gbit/s | Tx: 2.488 Gbit/s | Tx: 10 Gbit/s | Tx: 2.488 Gbit/s |
| Rx: 10 Gbit/s | Rx: 1.244 Gbit/s | Rx: 10 Gbit/s | Rx: 1.244 Gbit/s | |
| Minimum output optical power | 2 dBm | 1.5 dBm | 4 dBm | 3.0 dBm |
| Maximum output optical power | 5 dBm | 5.0 dBm | 7 dBm | 7.0 dBm |
| Maximum receiver sensitivity | –26 dBm | –28.0 dBm | –28 dBm | –32.0 dBm |
| Optical connector type | SC/UPC | SC/UPC | ||
| Optical fiber type | Single mode | Single mode | ||
| Transmission distance | 20 km | 20 km | ||
| Saturation optical power | –5 dBm | –8.0 dBm | –7 dBm | –12.0 dBm |
| Extinction ratio | 8.2 dB | 8.2 dB | 8.2 dB | 8.2 dB |
| Model | QTY/CTN | G.W/CTN (kg) | Dimension/CTN (cm) | CBM/CTN (m³) |
| GFCH | 1 | 3 | 50*33*8 | 0.013 |
