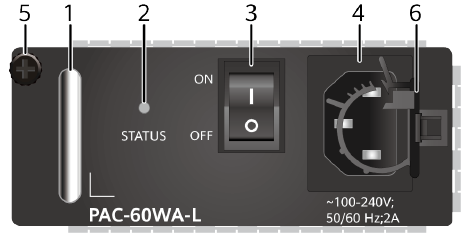

Panel of a 60 W AC power module
1. Handle 2. Indicator
3. Power switch 4. AC power socket
5. Captive screw 6. AC power cable locking strap
Supported in Huawei S5721-28X-SI-24S-AC, S5720-28P-SI-AC, S5720-52P-SI-AC, S5720-28X-SI-AC, S5720-28X-SI-DC, S5720-52X-SI-AC, S5720-52X-SI-DC series switches.
Technical specifications of a 60 W AC power module
| Item | Description |
|---|---|
| Dimensions (H x W x D) | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight | 0.8 kg (1.76 lb) |
| Rated input voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current | 2 A |
| Maximum output current | 5 A |
| Rated output voltage | 12 V |
| Maximum output power | 60 W |
Functions of a 60 W AC power module
| Function | Description |
|---|---|
| Input protection | Provides protection against input undervoltage condition. |
| Output protection | Provides protection against output undervoltage, output overvoltage, output overcurrent, and output short circuit conditions. |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold (70°C or 158°F), the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
| Surge protection | – |
| Hot swapping | Supported |
