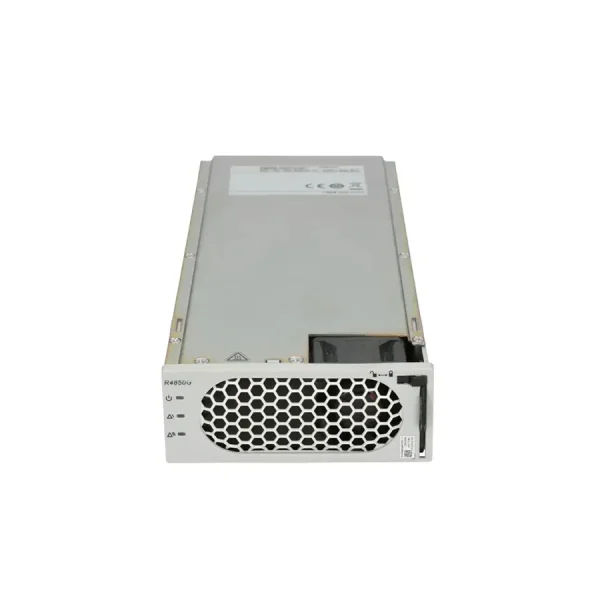

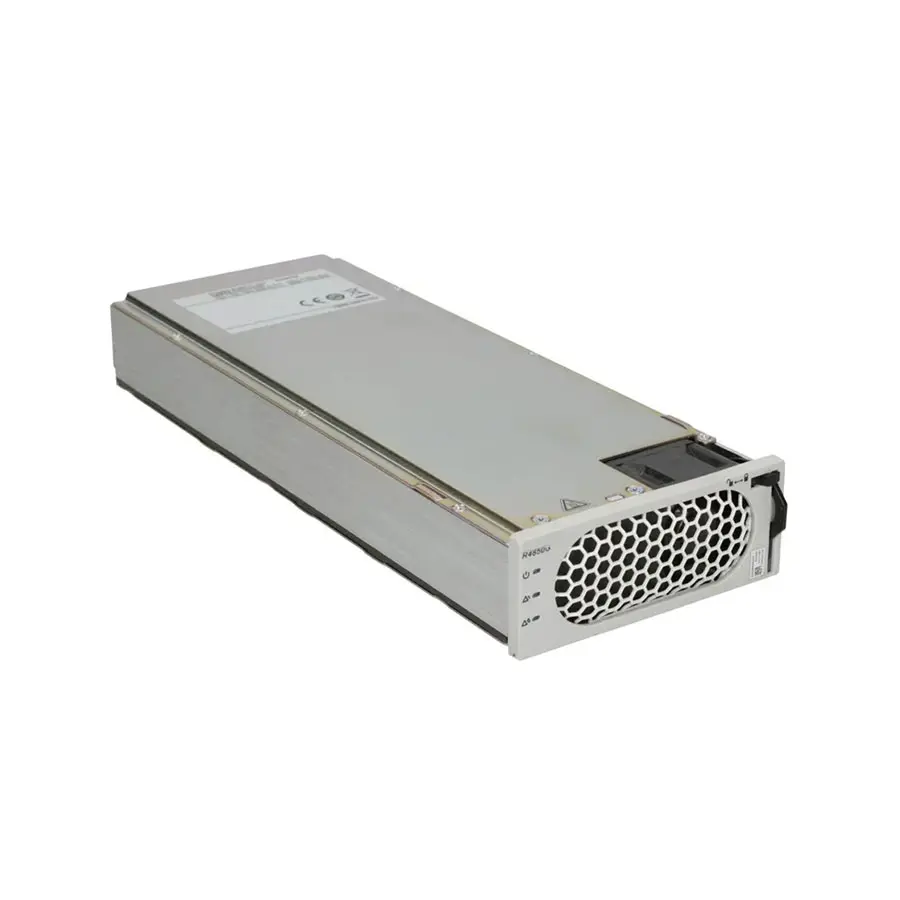

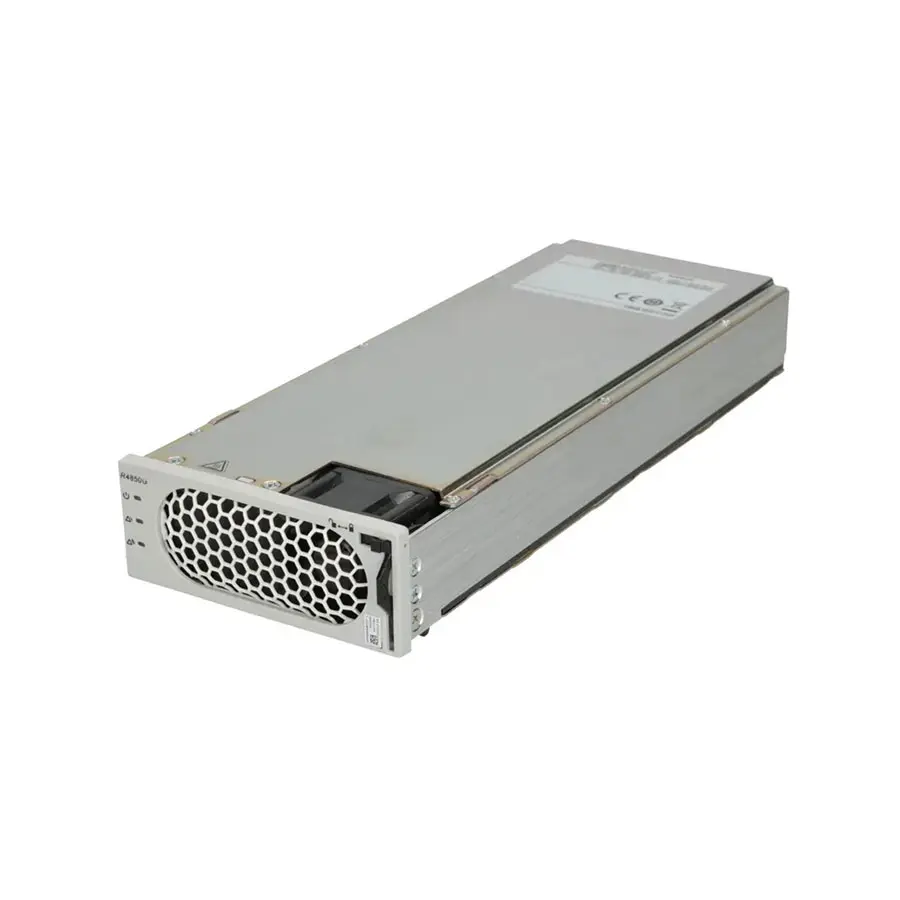

Huawei AC/DC power facility ETP48100-B1 and ETP48100-A1 50A power module
R4850G converts 110 V AC or 220 V AC power into -48 V DC, the output voltage can be adjusted by a PMU
Provides protection against overcurrent, overvoltage, and overtemperature for its DC power outputs
Dissipates heat using its built-in fans
Provides output power of 3000 W
| Item | R4850G2 |
| Input voltage | 85~300VAC |
| Input mode | 220VAC single phase(or 110VAC dual live lines) |
| Frequency | 45~66Hz, rated: 50Hz/60Hz |
| Rated input current | <17A |
| Power factor | ≥0.99 |
| THD | ≤5％ |
| Output voltage | 42~58VDC, default value: 53.5VDC |
| Output power | 3000W(176~300VAC) |
| Operating temperature | -40℃~+75℃(non-derating under 55℃) A11 |
| Storage temperature | -40℃~+75℃ |
| Relative humidity | 5%~95%(non-condensing) |
| Altitude range | ≤4000m(If the altitude is within the range of 3000m to 4000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
| Dimension | 40.8(H)×105(W)×281(D)mm |
| Weight | ≤2kg |
