Name: Huawei Original eSFP-GE-SX-MM850 02315204 - fiberolt.com
Brand: Huawei
SKU: 02315204
Rating: 5.00 (2 reviews)

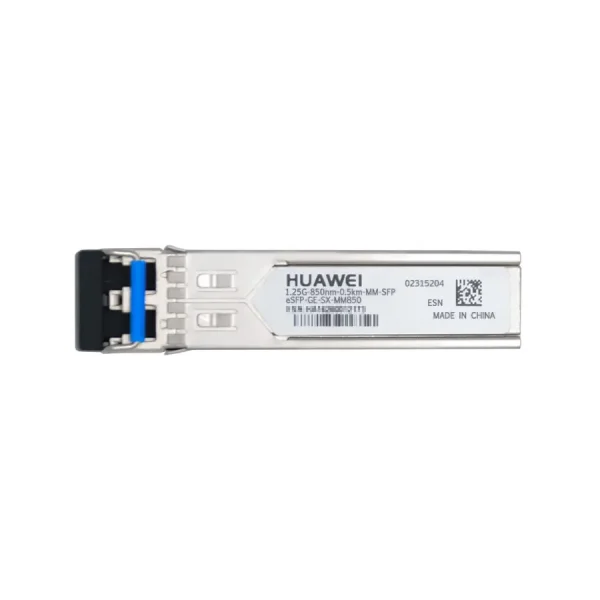

Huawei eSFP-GE-SX-MM850 02315204 850nm GE 0.5km LC Transceiver Module

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

Huawei 02315204 Original Optical Transceiver eSFP-GE-SX-MM850, eSFP, GE, Multi-mode Module (850nm,0.5km,LC)

Distance

0.5km

Brand

Huawei

Condition

Original Sealed

Wavelength

850nm

Rate

Enquiry

SKU: 02315204 Category: GE SFP Module Tag: GE SFP

Description

eSFP-GE-SX-MM850 Features:

PN: 02315204

GE SFP Multi-mode Module works with a wide range of Huawei networking devices.
• Huawei network switches
• Huawei network routers
• Huawei firewalls
• Huawei security gateway
• Huawei fiber media converter
• Huawei network adapters
• Huawei network interface card (NICs)

Fiberolt.com provides Cisco GE SFP, Custom GE SFP modules for your choice as well.

SFP modules come in various speeds, from 100 Mbps to 100 Gbps. Match the transceiver speed to the capabilities of your network devices and the desired data transfer rate.

Cisco GLC-ZX-SMD 1000BASE-ZX SFP

Cisco SFP-10G-SR-S 10G SFP+

Cisco SFP-25G-SR-S 25G SFP28

Cisco QSFP-40G-CSR4 40G QSFP

Cisco QSFP-100G-PSM4-S 100G QSFP

Cisco QDD-400G-DR4-S 400G QSFP-DD

Different SFP modules are suited for different distances. Short-range transceivers (up to a few kilometers) are typically used for within-building connections, while long-range ones (up to 100km or more) are ideal for outdoor deployments.

Huawei SFP-GE-SX-C GE 0.5km SFP

Huawei SFP-10G-ZR 10GE 80km SFP+

Huawei SFP-25G-SR 25G 0.1km SFP28

Huawei QSFP-40G-LX4 40G 2km QSFP+

Huawei QSFP28-100G-PSM4 100G 0.5km QSFP28

SFP modules work with either single-mode or multi-mode fiber optic cables. Single-mode fibers are thinner and support longer distances, while multi-mode fibers are thicker and better for shorter distances. Choose the type that aligns with your cabling infrastructure.

If you’re unsure about any aspect of choosing SFP transceivers, consulting with sales@fiberolt.com, our technical will provide expert advice and help you select the best options for your specific needs.

Specification

Item	eSFP-GE-SX-MM850	SFP-GE-SX-C	SFP-GE-LX-SM1310	SFP-GE-LX10-C
Transceiver form factor	eSFP	eSFP	eSFP	eSFP
Transmission speed	GE	GE	GE	GE
Center wavelength (nm)	850	850	1310	1310
Standards compliance	1000BASE-SX	1000BASE-SX	1000BASE-LX10/LH	1000BASE-LX10/LH
Connector type	LC	LC	LC	LC
Applicable cable and maximum transmission distance	Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km	Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km	Single-mode fiber: 10 km	Single-mode fiber: 10 km
Transmit power (dBm)	-9.5 to -2.5	-9.5 to -2.5	-9.0 to -3.0	-9.0 to -3.0
Maximum receiver sensitivity (dBm)	-17	-17	-20	-20
Overload power (dBm)	0	0	-3	-3
Extinction ratio (dB)	9	9	9	9
Operating temperature	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)
Part number	02315204	02312UUB	02315200	02312UUC

Reviews (2)

2 reviews for Huawei eSFP-GE-SX-MM850 02315204 850nm GE 0.5km LC Transceiver Module

Andrew – April 2, 2024

Rated 5 out of 5
Much cheaper than our local price, and same performance.
Elijah – August 14, 2024

Rated 5 out of 5
The 1000M short distance optical modules all work well in GICF.
