Fiberhome AN6000-15 OLT

Fiberhome AN6000-15 Subrack with 2*HSCA Core Switch Board, 2*PIBA DC Power Board

Height

11U
Width

19inch
Brand

Fiberhome
Enquiry
Category: Tag:
Description
AN6000-15 Features:

Fiberhome AN6000 Series are brand-new next-generation intelligent optical line terminal devices that provide users with integrated service access solutions. They feature large capacity, high bandwidth and low cost, so as to meet the demand of rapidly growing broadband services.
AN6000 Series provide multiple service access modes such as GPON,10G EPON, XG-PON, XGS-PON and XG(S)-PON Combo. They can be applied to access scenarios such as FTTH, FTTB, FTTO, FTTC, FTTA, FTTDP and FTTM, catering to service scenarios such as smart home access, government / enterprise group customer access, and 5G fronthaul, with all the services carried by one optical fiber network.

Fiberhome AN6000-15 is a large-sized optical line terminal device deployed in a central office. Providing 15 service slots and featuring large capacity and high bandwidth, the device can cater to the access demand in a densely-populated area.

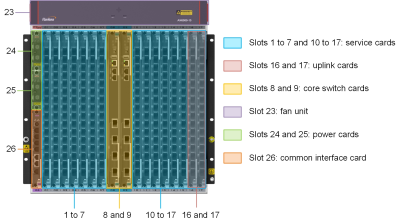

Slot Distribution

AN6000-15

Supports core switch board HSCA
Supports uplink board HU8A KU1B
Supports GPON board GPOA
Supports 10G GPON board GX8A
Supports 10G EPON board EXOA, EX8A
Supports GPON & XGPON combo board GM8A GM8B GMOA
Supports GPON & XGSPON board GNOA
Supports GPON XGPON and XGSPON board GFOA

Specifications

Specifications

Specification
Model AN6000-17 AN6000-15 AN6000-7
Slot bandwidth 200 Gbit/s
Switch capacity of the backplane bus 13.6 Tbit/s 12 Tbit/s 5.6 Tbit/s
Core switch card capacity (in the load sharing mode) 6.8 Tbit/s
MAX number of MAC addresses 262144
MAX number of IPv4 routing tables 16384
MAX number of IPv6 routing tables 8192
MAX number of ARP tables 18432
MAX number of ND tables 9216
MAX number of multicast groups 4096
MAX number of GPON ports 272 240 112
MAX number of 10G EPON ports 272 240 112
MAX number of XG-PON ports 272 240 112
MAX number of GPON & XG-PON Combo ports 272 240 112
MAX number of GPON & XGS-PON Combo ports 272 240 112
MAX number of uplink ports in the system 16*10GE / GE + 8 *10GE / GE;
8*10GE / GE + 2*100GE + 8*10GE / GE
MAX number of ONUs connected 17408 8192
MAX number of multicast users 17408 8192
MAX transmission distance (PON port) 60 km
MAX uplink transmission distance 80 km
Time for active-standby switching of core switch cards / uplink cards ≤ 50 ms
Dimensions (H × W × D)
subrack with mounting ears for 21-inch cabinets		 486*530*282mm 486*530*282mm 266*530*253.8mm
Dimensions (H × W × D) of a subrack with
mounting ears for 19-inch cabinets		 NA 486*480*282mm 266*480*253.8mm
Weight of an empty subrack (excluding the fan) 14 kg 12.15 kg 8.5 kg
Weight of an empty subrack (including the fan) 19 kg 16.65 kg 10.7 kg
MAX input current 63 A 37.5 A
Power supply mode DC (two channels of power supplies forming redundancy protection
Working voltage range -38.4 V to -57.6 V
Rated voltage -48 V
Operating temperature -40℃ to 65℃
Operating relative humidity 5% to 95% (non-condensing)
Storage temperature -40℃ to 70℃
Relative humidity for storage 5% to 95% (non-condensing)
Overall power consumption Typical configuration: 2*HSCA+17*GNOA+2*PIBA+FAN+CIOA
Static power consumption: 1211 W
Typical power consumption: 2093 W
MAX power consumption: 2449 W		 Typical configuration: 2*HSCA+15*GNOA+2*PIBA+FAN+CIOAStatic power consumption: 1098 W
Typical power consumption: 1880 W
MAX power consumption: 2435 W		 Typical configuration: 2* HSCA+7*GNOA+2*PIBA+FAN
+CIOA
Static power consumption: 614 W
Typical power consumption: 996 W
MAX power consumption: 1301 W
