Fiberhome AN5516-06 Features:
It is compact carrier-class access equipment deployed in a central office. It can be applied to access scenarios with moderate density, where large-capacity access equipment may be insufficiently used. This helps save the deployment cost of users.
AN5516-06 is 6U height, 19inches width, provides 6 service slots, 2 power slots, 2 uplink slots.

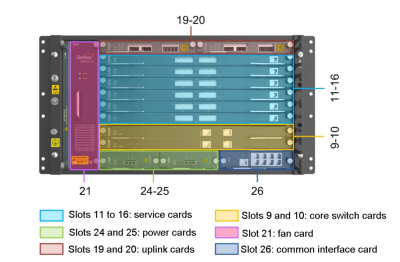

Slot Distribution
Supports PON access service cards, including EPON, GPON, 10G EPON, XG-PON, GPON & XG-PON Combo, and GPON & XGS-PON Combo interface cards
Supports core switch board HSWA HSWB HSWD
Supports power board PWR
Supports uplink board HU1A HU1B HU2A HU2C HU4A GU6B GU6F
Supports EPON service board EC4B, EC8B and EGOB
Supports 10G EPON service board XG8A
Supports GPON service board GC4B, GC8B and GCOB
Supports XG-PON service board XP4A, XP8A
Supports GPON&XG-PON service board XP8C
